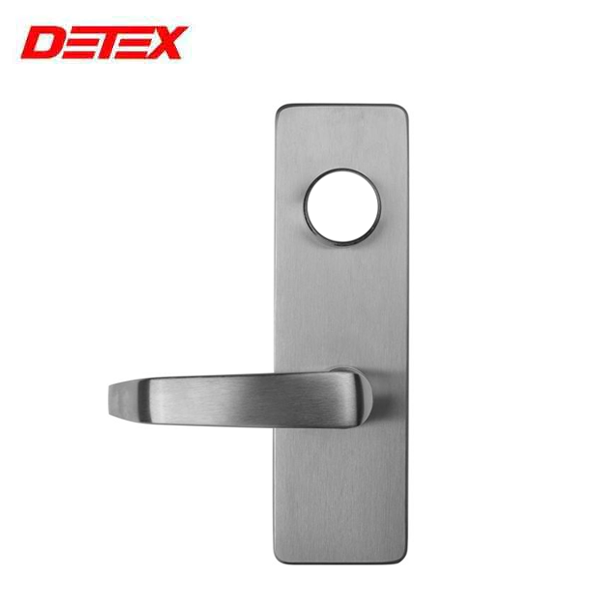

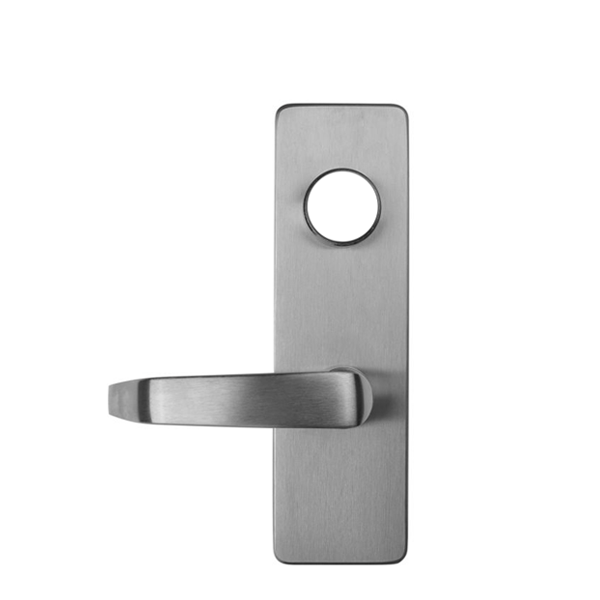

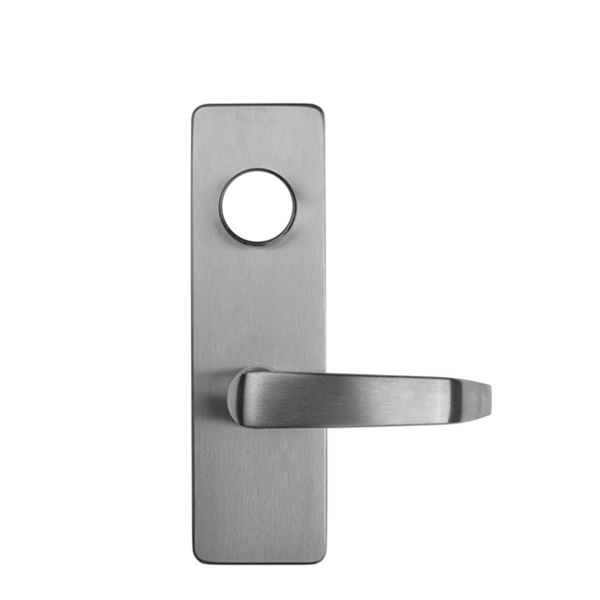

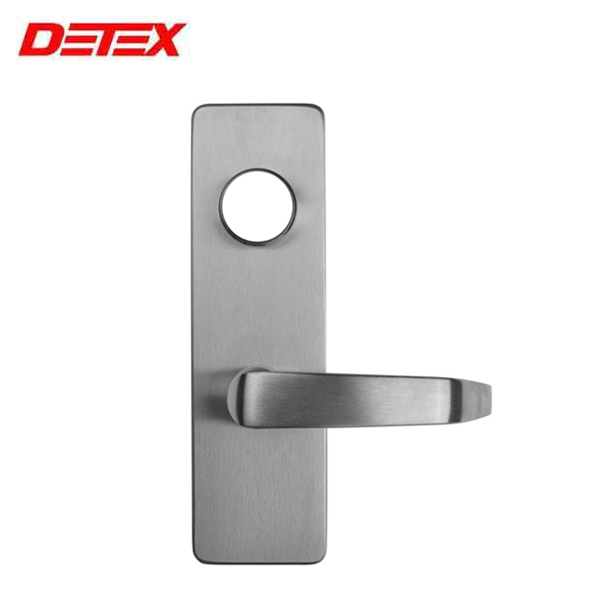

Detex - 09D2WS - Lever Trim w/ Cylinder Hole For Value Series Devices - D2W Lever - Satin Chrome - Optional Handing - Grade 1
In Stock
SKU:
DTX-09D2WS-RHR-626
NSID:
46824
46927
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $399.62
-
$455.07 - $399.62
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Assorted outside trims provide security for all types of installations. Built to be as durable as the panic devices, these heavy-duty trims will stand up to heavy use and abuse. The versatile design of the trims, combined with the device mounting plate, makes changing functions as simple as replacing the outside trim. This can easily be done without removing the exit device from the door. These trims can be used on V40 Series Rim and V50 Series Surface Vertical Rods. Detex uses the BHMA functions/descriptions for all trims.
Features
- D2W Vandal Resistant Trim
- Satin Chrome
- S Lever
- Optional Handing
- Mortise cylinder required
Specifications
| Function | 09 - Entrance by knob or lever only when released by key. Key removable only when locked. |
| Door Thickness | 1-3/4" - 1-3/4" |
| Compatible | Value Series Devices |
| Cylinder | 1-1/8" mortise cylinder (Not Included) |
| Backset | 2-3/4" |
| Handing | Right Hand Reversible, Left Hand Reversible |
| Lever |
S lever |
| Finish | 626 - Satin Chrome |
| Certifications | ANSI Grade 1 |
