DH-DSS7016DR-S2

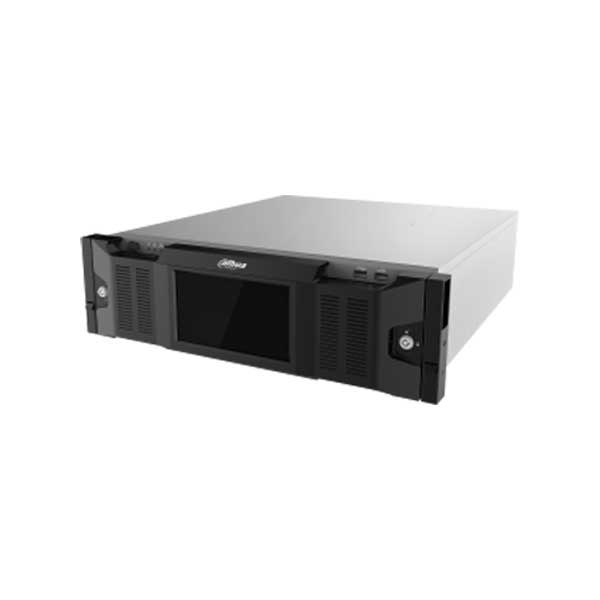

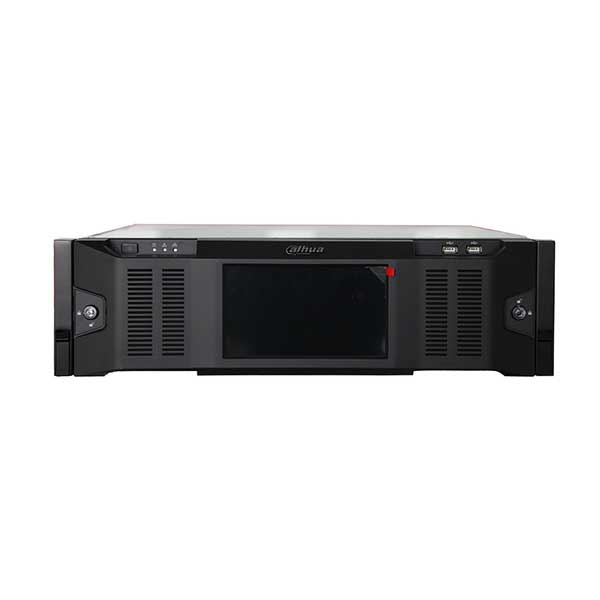

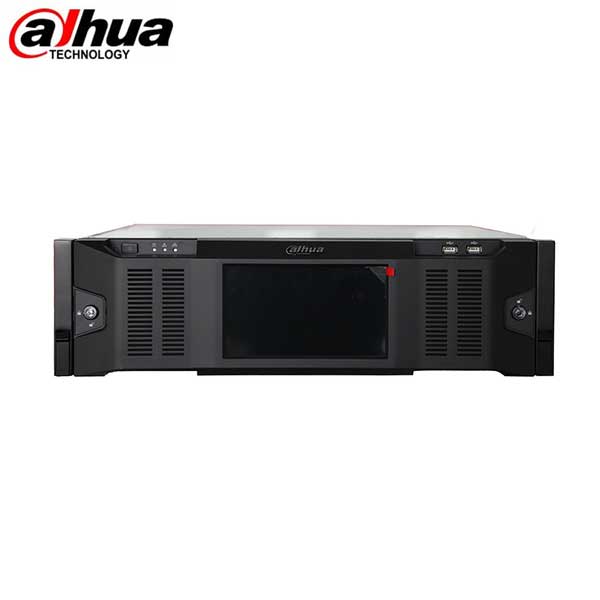

The DHI-DSS7016DR-S2 Video Management System is a powerful, all-in-one video surveillance management system pre-loaded with Linux-optimized DSS software for system scalability and reliability.
The server supports 15 hard disk drives for video and snapshot storage. The server also supports edge storage and extended storage via iSCSI. The server provides user rights management, device management, alarm management, center storage, TV wall output and, two-way audio. In addition to these VMS features, the server offers advanced features, including intelligent business analysis and face recognition, features not found on many other VMS servers.
Features
- Embedded Linux Operating System with Pre-installed DSS Software
- Redundant Power Supply and Hot Standby for Stable 24/7 Operation
- 15 Hot-pluggable Hard Drives and Extended Storage via iSCSI
- Live Video Playback
- Configure Video Wall Layout and Scheme
- Configure NVR Recording
- Offers Fisheye Camera Dewarping on Live View and Playback Images
- Intelligent Video System with Face Recognition
- Five-year Warranty
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $12,308.38
-
- $12,308.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Technical Specification
| System | |
| Main Processor | Intel® i5 6600, 64-bit 4-Core Processor |
| Operating System | Embedded LINUX |
| Memory | 8 GB |
| Motherboard | Embedded |
| Hard Disk Compatibility | Hot-swappable and online replacement SAS and SATA compatible |
| Hardware – Control Client | |
| Operating System | Windows 7 (32-/64-bit) Windows 10 (64-bit) |
| CPU |
Recommended: Intel® Core™ i5 64-bit, 4-core Processor Minimum: Intel® Core™ i3 64-bit, 4-core Processor |
| Memory |
Recommended: 8 GB Minimum: 4 GB |
| Graphics Card |
Recommended: NVIDIA® GeForce® GT 730 Minimum: Intel® HD Graphics 4400 |
| Storage |
Recommended: 200 GB free space Minimum: 100 GB free space |
| Network Connection | One (1) 1000 Mbps Ethernet Port |
| Hardware – Mobile Client | |
| Iphone |
iPhone 5S and Later |
| Android |
Resolution: 1280 × 720 and above RAM: 3 GB and above |

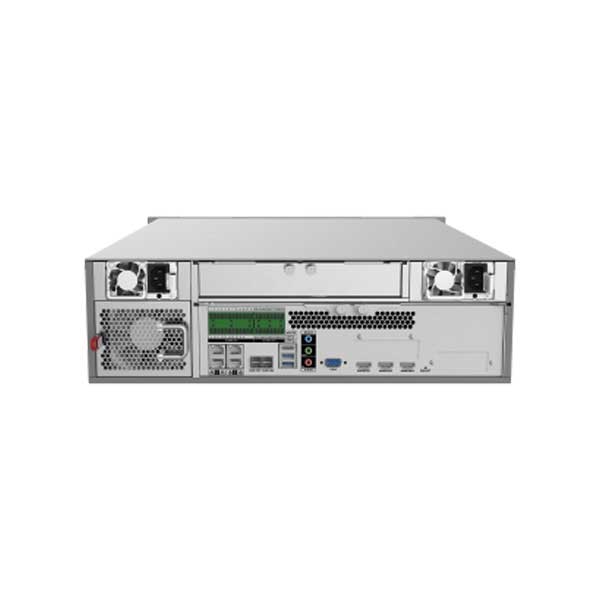

| Interface | |
| Network Ports |
Four (4) RJ-45 Ports (100/1000 Mbps) |
| RS232 | Reserved |
| RS485 | Reserved |
| USB |
Front Panel: Two (2) USB 3.0 Ports Rear Panel: Two (2) USB 3.0 Ports |
| HDMI |
Output: One (1) Port |
| VGA |
Output: One (1) Port |
| Storage | |
| HDD Installation |
Supports 15 HDD (3.5-in.) for video and picture storage |
| Storage | 8 TB per HDD up to 200 TB per server |
| HDD Mode |
Single RAID 0/1/5/6/10 |
| Video Storage Bandwidth, per Server | 600 Mbps |
Performance Specification
| Organization, Users, Roles | |
| Organization |
10 Hierarchies 999 Organizations per Hierarchy |
| Roles |
100 |
| Users |
150 Online Users, 200 Total Users |
| Users, for VDP Mobile Application | 500 Online Users, 5000 Total Users |
|
Video Devices |
|
| Total Devices | 2000 |
| Total Video Devices |
500 Devices, 1000 Channels |
| Auto Register | 500 Devices, 1000 Channels |
| ONVIF | 200 Devices, 400 Channels |
| Face Recognition | 100 Channels |
| License Plate Capture/Recognition |
64 Channels (6 pairs for entrance and exit) |
| Object Detection | 20 Channels |
| Heatmap |
64 Channels |
| People Counting |
100 Channels |
| Access Control and Intercom | |
| Access Control | 200 IP Devices, 512 Doors |
| VDP | 2000 IP Devices (up to 64 VTO units) |
|
Alarms |
|
| Alarm Controller |
10 IP Devices, 100 Channels |
| Rules |
200 |
| Media Transmission Server | |
| Video Input Server | 600 Mbps |
| Video Output Server | 600 Mbps |
| Playback and Download | |
| Playback Bandwidth per Server | 100 Mbps |
| Download Tasks |
5 |
| Maximum Record Plan |
100 |
| Map | |
| Hierarchies | Eight (8) |
| Submaps | 32 per Hierarchy |
| Raster Map Size | 14.7 MB |
| Spots per Map | up to 300 (GIS and Raster) |
| Face Recognition | |
| Face Library | 50 |
| Total Persons for Face Library | 5000 |
| Face Images (imported each time) | 1000 |
| License Plate Recognition | |
| Vehicle Blocklist | 100 |
| Total Persons for Face Library | 5000 |
| Data Information | |
| Alarm Records | 5,000,000 |
| Face Snapshots Records | 5,000,000 |
| Number Plate Recognition Records | 5,000,000 |
| Violation Records | 5,000,000 |
| Average Speed Records | 5,000,000 |
| People Counting Records | 5,000,000 |
| Heatmap Records | 5,000,000 |
| Video Intercom Records | 5,000,000 |
| Log | 5,000,000 |
| Personnel Management | 5000 |
| People | 5000 |
| Cards | 5000 |
| Faces | 5000 |
| Fingerprints | 5000 |
| Events | |
| Total Events | 240 per second |
| Event without Picture | Alarm: 240 per second Alarm Controller: 40 per second Access Control: 16 per second |
| Event with Picture |
LPC/LPR: 12 per second Alarm: 40 per second Face Capture: 120 per second Object Detection: 40 per second |
Distributed System
| Devices and Channels | |
| Sub Server | up to Five (5) |
| Total Devices | 5000 |
| Total Video Devices | 2500 Devices, 5000 Channels |
| Auto Register | 2500 Devices, 5000 Channels |
| ONVIF | 400 Devices, 800 Channels |
| Face Recognition | 500 Channels |
| License Plate Capture/Recognition | 320 Channels |
| Object Detection | 100 Channels |
| Heatmap | 320 Channels |
| People Counting | 500 Channels |
| Access Control and Intercom | |
| Access Control | 500 IP Devices, 2500 Doors |
| Events | |
| Total Events | 480 per second |
| Event without Picture | Alarm: 480 per second Access Control: 96 per second |
| Event with Picture | LPC/LPR: 120 per second Alarm: 120 per second Face Capture: 280 per second Object Detection: 80 per second |
| Electrical | |
| Power Supply | 100 VAC to 240 VAC, 50/60 Hz |
| Power Consumption | 315 W, maximum; 210 W stable power |
| Environmental | |
| Operating Conditions | 0° C to +40° C (+32° F to +104° F), 10% to 80% RH, non-condensing |
| Storage Conditions | –20° C to +70° C (–4 °F to +158° F), 5% to 90% RH, non-condensing |
| Operating Altitude | 0 m to 5000.0 m (0 ft to 16404.20 ft) |
| Construction | |
| Dimensions | 3U, 444.80 mm x 522.40 mm x 133.20 mm (17.51 in. x 20.57 in. x 5.24 in.) |
| Net Weight | 19.10 kg (42.11 lbs) |
| Front Cover | 7-in. HD LCD Screen (1920 x 1080, 1280 x 1024, 1024 x 768) |
| Installation | Standard 19-in. Rack Installation |
| Certifications | |
| Safety | EN 60950-1:2006+A11:2009+A1:2010+A12: 2011+ A2:2013 |
| Electromagnetic Compatibility (EMC) | FCC 47 CFR Part 15 Subpart B EN 55032:2015, EN 55024:2010+A1:2015 EN 50130-4:2011+A1:2014, EN 61000-3-2:2014 EN 61000-3-3:2013 |
Downloads:
Functions
Compatibility
The VMS server is compatible with all Dahua IP-enabled devices: network cameras, NVRs, DVRs, Mobile DVRs, and access control devices plus many more. The server is also compatible with the ONVIF protocol, so it can connect to ONVIF-enabled third-party devices. The server offers and SDK for further support of third-party platforms and mobile operating systems.
Fisheye Camera
Support DSS features full support for Dahua Fisheye cameras. The software supports options for the Fisheye camera installation and eight (8) dewarp modes. Dewarping solves the problem of distortion in the circular panoramic view in both live or playback modes.
Real-time Face Recognition
The DSS7016DR-S2 performs real-time facial recognition simultaneously on several channels. The server captures and analyzes facial features to determine gender, age, expression, glasses, moustache, and mask, and then can record the faces and store the associated structured data. The server also filters incoming video to display faces that match target features.
Intelligent Business Analysis
The DSS supports people counting and heat map; advanced features that add business intelligence to your security system. Intelligent Analysis tracks and stores daily, weekly, monthly, and yearly people flow through a defined scene and stores the data. DSS retrieves this data and supports searching, displaying, and storing the data.
Video Wall
DSS offers settings to configure all aspects of a video wall application. The application supports video wall layout, live preview, scheme configuration, and tour setup. In addition, the application supports video wall splicing and roaming.
Management Operations
The server manages the devices and the user accounts for an entire organization. Operators can assign different camera ranges, active use periods, and business roles for each user. The server also supports different schemes for various events, including IVS, to record and view all event history information.
