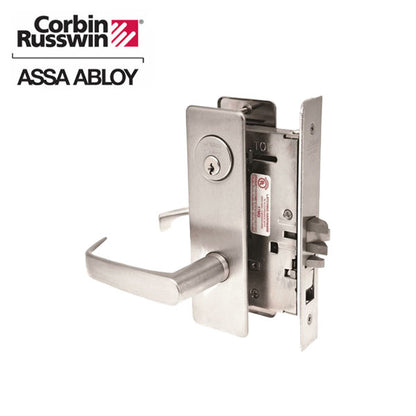

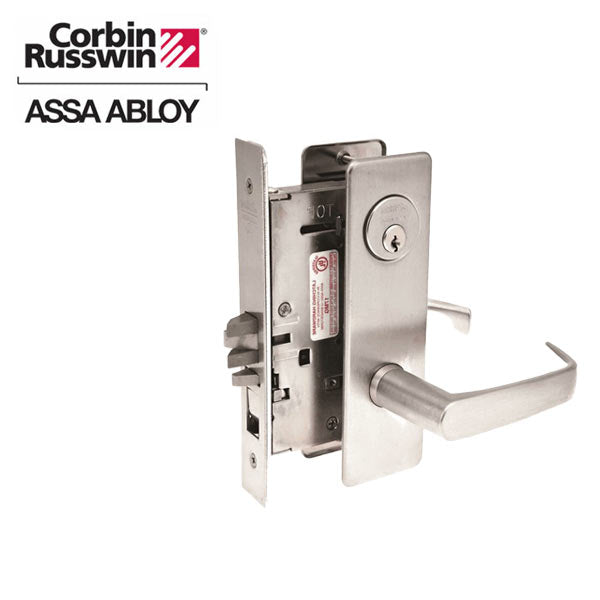

*Discontinued* Corbin Russwin - ML2051 - Mechanical Mortise Lock - Entry / Office - CSM Trim - GA Keyway - Optional Handing - Satin Stainless Steel - Grade 1
- $498.00
-
$672.30 - $498.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
CRN-ML2051-CSM-GA-630-LHR
The ML2000 Series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications. Constructed of heavy-gauge steel, the lockbody features our patented Quick Reversible latchbolt, and a 1” stainless steel deadbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.
Office or Entry lock: Key outside retracts latch-bolt, also locks and unlocks outside trim; Trim inside always retracts latch-bolt, trim outside remains locked; Thumb-turn inside locks and unlocks outside trim.
Features:
- Patented Quick Reversible feature enables reversal of hands without disassembling the lock case.
- Security trims provide a vandal-resistant barrier.
- Multi-function lockbody, allowing 12 functions to be configured from one lockbody.
- Can be used with new or existing Corbin Russwin key systems, including patented high-security Access 3 cylinders.
- Accepts cylinders of most other manufacturers.
- Provides life safety and security in a single door prep, saving the additional cost of a deadlock
- Through-bolted trim designs for proper alignment and increased security.
- $498.00
-
$672.30 - $498.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications:
| Construction: | Heavy-gauge Steel |
| Lock Function: | F04 - Entrance or Office |
| Door Thickness: | 1-3/4" (44mm) standard |
| Backset: | 2-3/4" |
| Handing: | Factory Handed, but quickly reversible |
| Strike: | ANSI straight lip 4-7/8" x 1-1/4" x 1-1/8" lip to center |
| Latch bolt: | 2-piece mechanical with anti-friction insert, 5/8"x1"x 3/4" throw |
| Deadbolt: | One-piece stainless steel 1" Throw |
| Cylinder: | Brass 6-Pin GA Keyway |
| Keys Included: | 2 |
| Trim: | Lever: Cast Escutcheon: Wrought |
| Certifications: | ANSI/BHMA Certified A156.13 Series 1000, Grade 1, Meets A117.1 Accessibility Code. |
| Manufacturer's Warranty: | Ten Year Limited |
