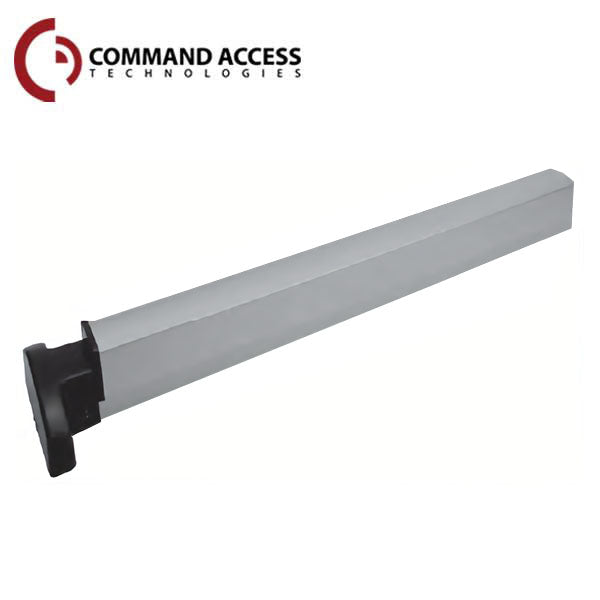

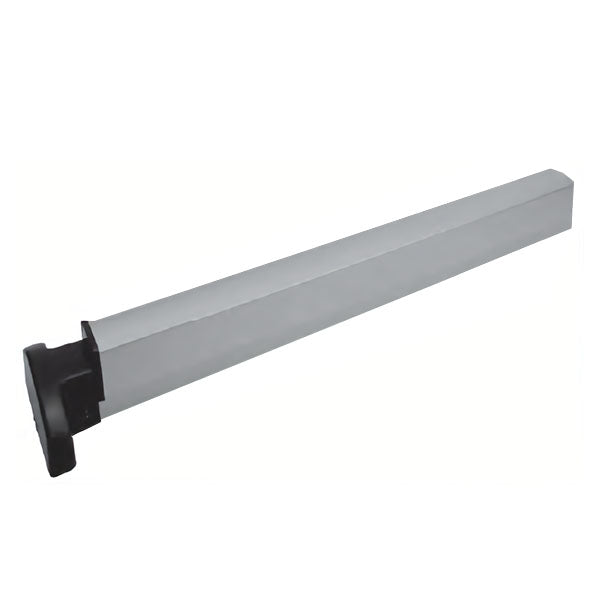

Command Access - PD11-CVRD-36 - Mechanical CVR Exit Device - 36 Inches - 24 - 30 VDC
In Stock
SKU:
CAT-PD11CVRD-36
NSID:
68394
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $287.30
-
$344.76 - $287.30
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Complete Device, PD11 retrofits Doromatic 1600/1700 and First Choice 3600/3700
Features:
- Voltage range – 24 to 30 VDC
- System protection – unit shutdown when voltage exceeds 30VDC
- Current Peak – 1A
- Current Hold -125mA
- Electronic travel adjustment – approx 1/4"
- 700' with 18ga wire; 1000' with 16ga wire; 1250' with 14ga wire; 1500' with 12ga wire
- Hardware:
- Materials: push bar made of extruded aluminum, anodized in finish specified.
- Pushbar Length: dimensioned for 36". Consult factory if field cut is required for smaller size doors with latch pullback
- Door Height (for CVR): 7’ standard;
- Door thickness: suits standard 1-3/4" thick aluminum, stile and rail doors
- Stile Width: Minimum 2" stile required. Fits medium and wide stile doors as well.
- Stile Wall: minimum 1/8" required for installation
- Fasteners: all provided
- Cylinders: not provided. Install RIM cylinder by others.
- Entry trim: not available from Command Access. Consult factory for options
Specifications:
| Voltage Range: | 24-30 VDC |
| Standard - Average Current Peak: | 1 A |
| Standard - Average Current Hold: | 125mA |
| Length |
Dimensioned for 36". Consult factory if field cut is required for smaller size doors with latch pullback |
