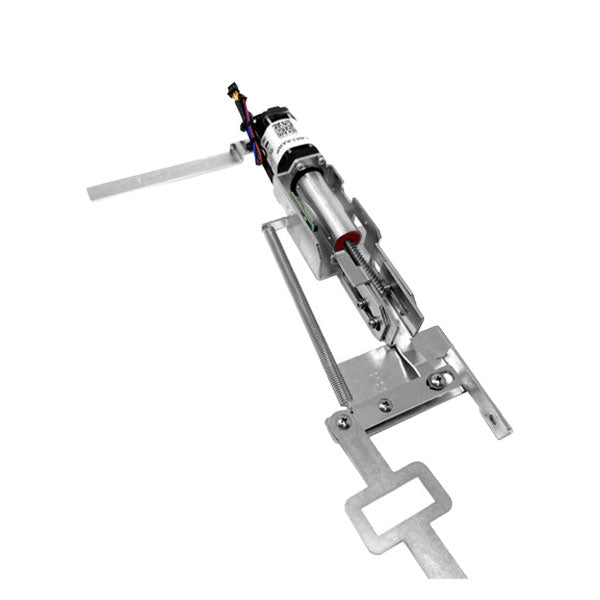

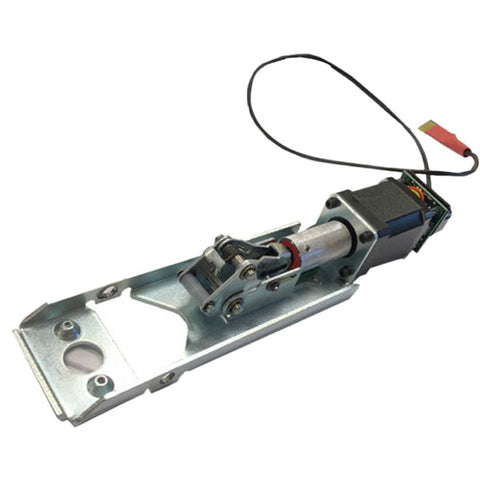

Command Access - Field Installable Motorized Latch Retraction Kit - For Kawneer Paneline Series Exit Devices - 2/18 Gauge - 24 to 25.3 VDC
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $347.25
-
$416.70 - $347.25
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Command Access MLRK1-KAWP is a cost-effective and straightforward way to upgrade your Kawneer Paneline series device to motor-driven latch retraction in the field. UL Listed. The next-generation electromechanical drive offers superior performance to its predecessor. It utilizes a patent pending custom ball screw assembly and CAT-designed customer stepper motor to provide remarkably efficient and reliable results. Since the kit retracts the push pad, the device can be electrically dogged allowing the device to remain in push/pull state, for as long as is desired. Patent pending push-to-start (PTS) Technology allows for an easy post-installation adjustment of the latch/latches. Last but not least , features an updated MM4 module with 2 different torque settings from energy-conscious to high torque to solve difficult jobs. Only one hole needs to be drilled and it's the raceway! It utilizes our PTS "Push to set" technology making post-installation adjustments incredibly easy.
Features:
- MM4 Smart Module Onboard diagnostics with audible feedback for adjustment and power issues
- "PT5" 5 second electronic adjustment for easy post-installation adjustment
- Electric dogging rated for continuous duty-Auto re-engage if push pad is pulled from dogged position
- Low current draw-field switchable to a "low current" or "high torque" mode
- Up to 300" wire run with 2-18ga wire- Long wire runs allow the installer to place the Command locking hardware power supply in a centralized location; i.e., the same closet as the access control panel.
- 8' cable with quick connection for MM4 module to connect to power supply lead easily.
- 3-Year "No Hassle" Warranty
| Manufacturer Parent | Command Access |
| For Use With | Kawneer Paneline Series |
| Function | Latch Retraction Kit |
| Sub-Series | MLRK1-KAWP-REX |
| ADA Compliant | No |
| Function Family | Part/Component |
| Standards | UL Listed |
| Voltage | 24 to 25.3 VDC |
| Product Type | Electronic Part/Accessory |
| Wire Gauge | 18 Gauge |
| Product Length | 300 Feet |
| Warranty | 3 year |
| Included Components | 60417 MLRK1 Motor; 50944 Molex Pigtail; 50030 6 Feet Power Cable; 60708/51186 MM4T Remote Module; 51198 Remote Module Cable; 40059 X2 Cable Mounting Pad; 40060 X2 Cable Ties; 40306 Phillips Screws X4 |
| Standard | Average Current Peak: 1.3A, Average Current Hold: 215mA |
| System Protection | Unit shutdown when voltage exceeds 28VDC |
| PTS adjustment | approximately 1/4" |
| High Torque | Average Current Peak: 2A, Average Current Hold: 250mA |
| Must be used with a CAT Power Supply | PS210/220/440B |
| Wire Run | 300' with 18ga wire |
| Device Cutdown Details |
Installed in-between activating brackets |
