CodeLocks - CL515 Gate Box Kit - Mechanical Lock - Heavy Duty - Tubular Latch Bolt Gate Box Kit - Double Sided - Passage function - Optional Finish
Available to Order
SKU:
CDL-95615
NSID:
48639
48640
- $426.93
-
$553.78 - $426.93
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
CDL-95615 / CDL-96117
The CL515 is a heavy-duty push-button tubular latch bolt. The outside lever handle will retract the latch after a correct code is entered. The spring-loaded latch bolt will lock automatically when the door is closed.
Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential
Features:
- Marine Grade Finish: The Marine by Codelocks range features a selection of locks that have been specially enhanced to withstand harsh outdoor environments and coastal applications. Reliable and durable, the marine grade black finish has proven to be resistant against moisture and salt spray, following rigorous salt spray testing for up to 1000 hours*.
- Double Sided: Allows for coded entry on both sides
- Code Free Passage Mode Function: The CL515 models provide a passage function. These models feature a black dot on the ‘Y’ button. When the ‘Y’ button is pressed along with a correct code input, the lever will retract the latch freely until disabled.
- Large full-size lever handles with a return to the door
- Suitable for interior and exterior use
- Heavy Duty deadlocking tubular latch. Latch retracts by turning the inside handle freely, or the outside handle after code input.
- Butterfly spindle not required.
- Tumbler alignment for easy code change
- Large three coil lever return spring suitable for high traffic use
- Selected models available in stainless steel or polished brass finish
- Neoprene seals included
- Easy, effective gate and fence installation
- Complete kits with all required components
- 14-gauge weldable steel boxes with pre-drilled fixing holes
- Supplied as raw steel, ready to paint
- Adjustable strike bracket with U-bolt fastener

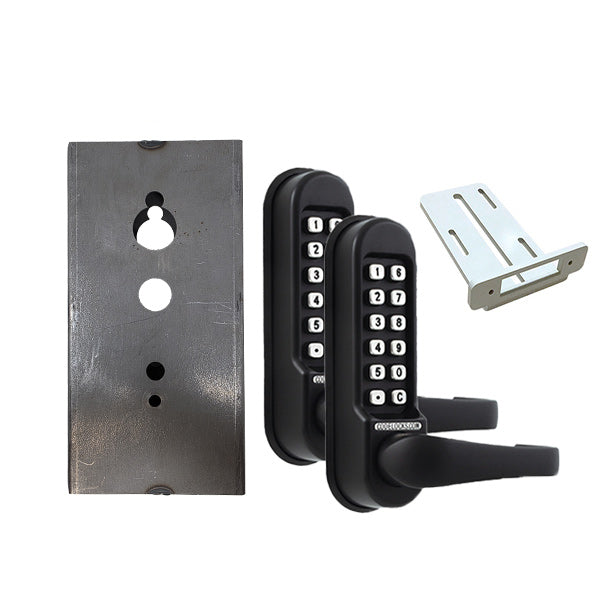

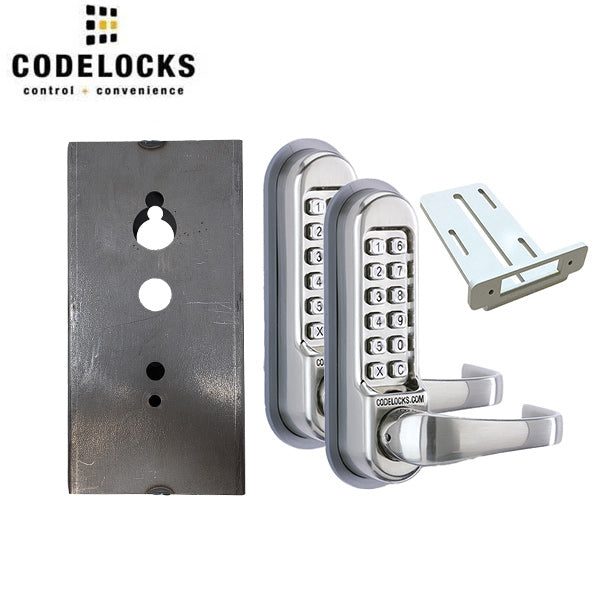

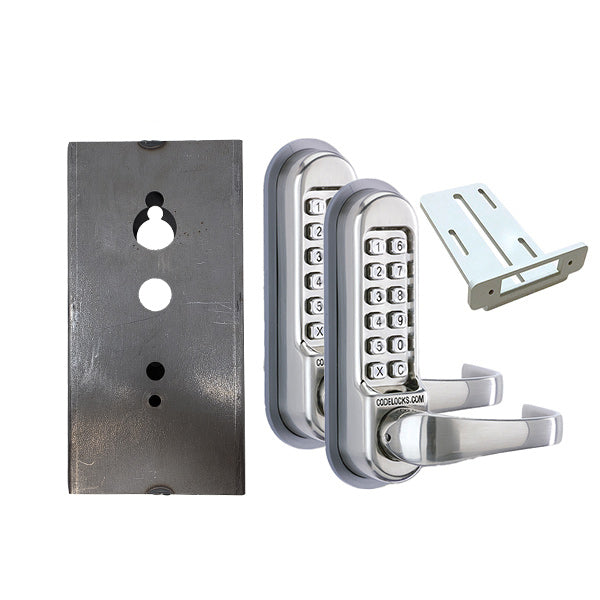

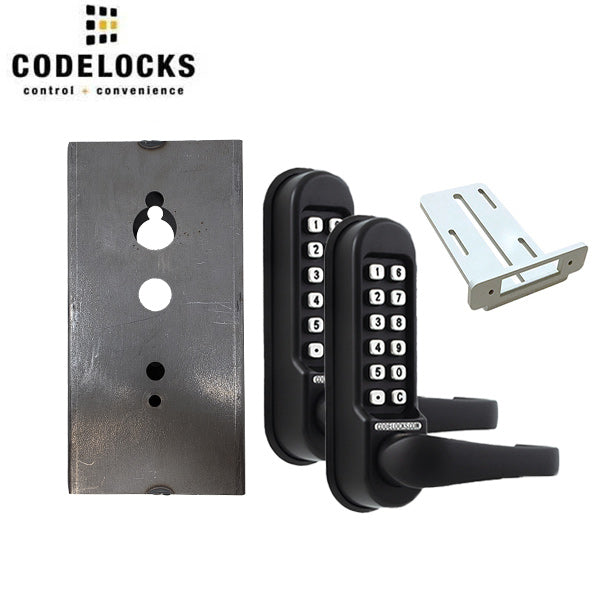

Gate Box Kit Components
- CL515 Tubular Latchbolt
- Codelocks installation, operating/programming instructions, fastening bolts and latch
- 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
- 16-gauge steel, adjustable latch bracket
Following the success of the mechanical marine grade lock range and due to high customer demand, Codelocks have further expanded the Marine range.
As well as existing CL200, CL400 and CL500 lock models, the expansion to the range now includes selected locks from the CL600 mechanical range, offering the benefits of on-the-door code changes, key override and full size lever handles.
The Marine by Codelocks mechanical lock range have been specially enhanced to withstand harsh outdoor environments and coastal applications. Reliable and durable, the marine grade black finish has proven to be resistant against moisture and salt spray, following rigorous salt spray testing*.
| Brand |
Code Locks |
| Gate Box Dimensions | 8.5” (H) x 5.5” (W) x 1.75” (D) |
| Gate Box Material | 14-gauge steel |
| Buttons |
2 x 6 |
| Code Change Method |
Tumblers (Off door) |
| Codes |
2,047 non-sequential code combinations available |
| Material | Zinc Alloy |
| Handed |
Non-handed |
| Keypad |
12 Stainless Steel Buttons |
| Latch Type | 2 3/4" or 2 3/8" Tubular Latch Bolt |
| Lock Dimensions | 177mm (7") x 48mm (1 ⅞) |
| Orientation | Vertical |
| Spindle | Two-part 8mm (5⁄16) spring-loaded spindle |
| Manufacturer Warranty | Limited Lifetime Warranty |
