CodeLocks - CL5000PK - Gate Panic Hardware Kit - Brushed Steel
Available to Order
SKU:
CDL-95377-BS
NSID:
69880
- $980.50
-
$886.14 - $980.50
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters/outdoor spaces. Gate Box Panic Hardware Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.
Features:
- Easy, effective gate and fence installation
- Complete kits with all required components
- Powder coated and pre-drilled
- Alarm Kits available
- Stainless steel exterior rated Codelocks exit device
- Keyed alike available
- Key cylinder box for keyed gates available
- Brushed steel finish
- Gate Box Kits available separately

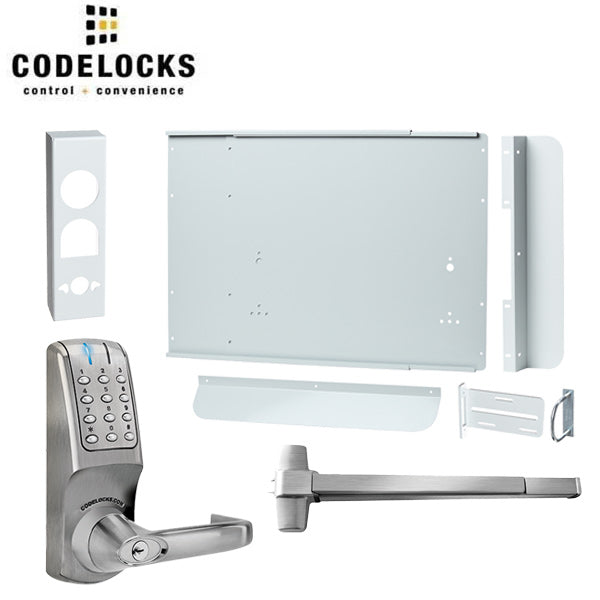

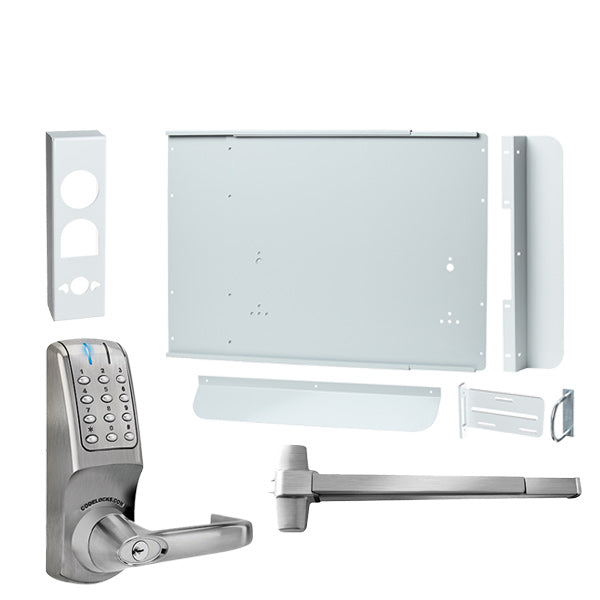

Gate Panic Hardware Kit Components:
- CL5000 Panic Access Kit
- Codelocks installation, operating/programming instructions and fastening bolts
- ANSI Grade 1 CL.ED Series Exit Device, available in two sizes, 36” and 48”
- Adjustable Strike bracket with u-bolt fastener
- Anti-Theft manipulation device
- 24” tall latch protector
- Specificed, pre-drilled trim box
- 24”, 2-piece panic shield adjustable to suit 30” - 54” wide gates
Heavy duty electronic lock with tubular latch, full size lever handles and key override as standard. Up to 80 User Codes. Remote release connections.
Specifications:
| Feature | Specification |
| Brand | Codelocks |
| Buttons | 3 x 4 |
| Code Change Method | Keypad (On Door) |
| Codes | User Codes 4, 5 or 6 digits long |
| Finish | Brushed Steel |
| Gate Box Dimensions | 24" x 2" x 30" (60.96cm x 5.08cm x 76.2cm) |
| Gate Box Material | 14-gauge steel |
| Gate Kits By Codelocks | Gate Solutions by Codelocks |
| Handed | Non Handed - Locks will fit doors hung on the left or right |
| Keyed Alike | Available |
| Keypad | Individual stainless steel buttons |
| Lock Material | Zinc Alloy |
| Low Battery Warning | Red LED will flash on opening to indicate low battery |
| Memory | Stores up to 80 User Codes |
| Operations | Up to 200,000 per set of 4 x AA batteries |
| Orientation | Vertical |
| Panic Hardware By Codelocks | Panic Hardware |
| Power | 4x AA |
| Spindle | Two part 5⁄16" (8mm) spring loaded spindle |
| Suitable For | Internal, External |
| User Types | Code |
