CodeLocks - CL615 - Mechanical Lock - Heavy Duty - Optional Backset - Tubular Latchbolt - Double Sided - Passage Function - Optional Cylinder Prep - Optional Finish - Grade 2
Available to Order
SKU:
CDL-CL615BB-IC-BS-70
NSID:
43803
43802
43799
43798
43801
43800
43797
43796
- $488.53
-
$780.30 - $488.53
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
CDL-CL615

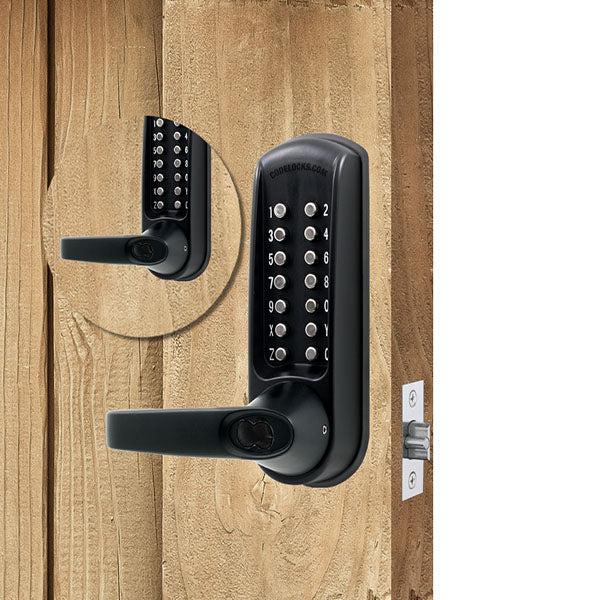

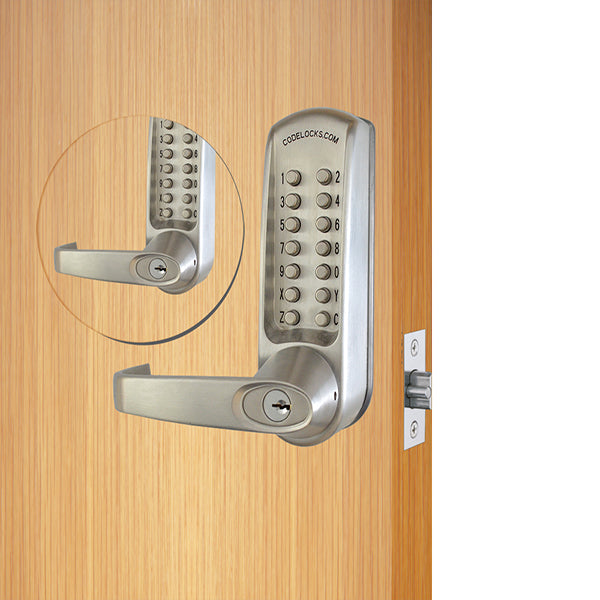

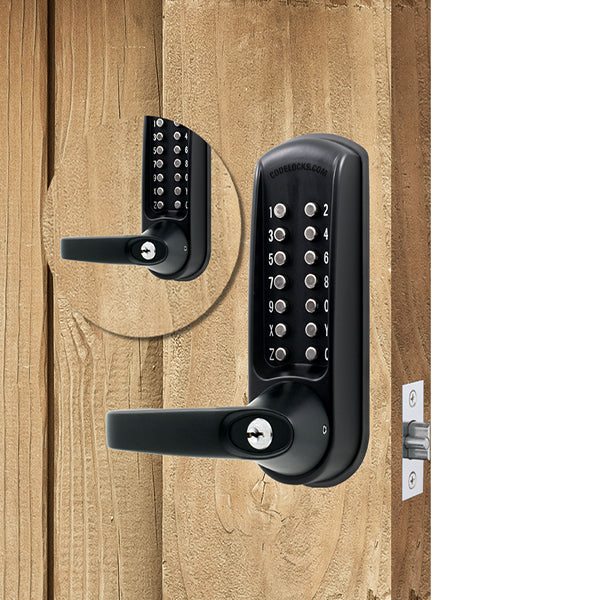

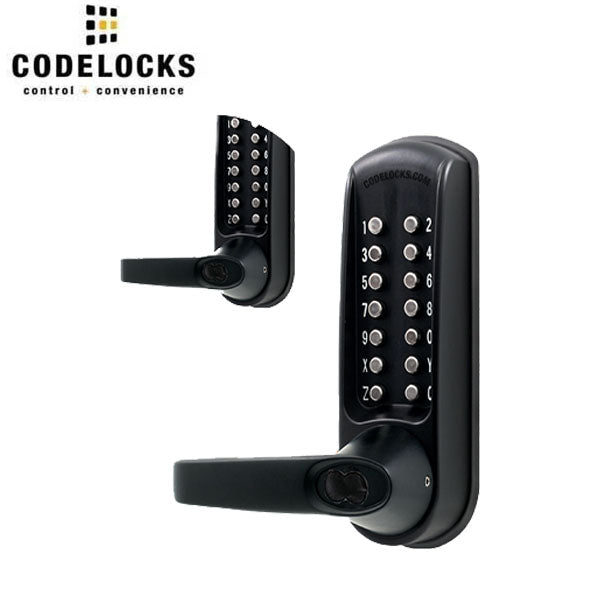

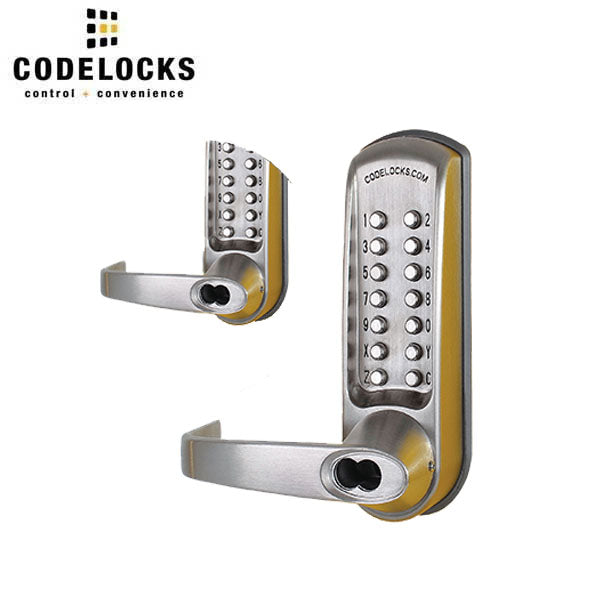

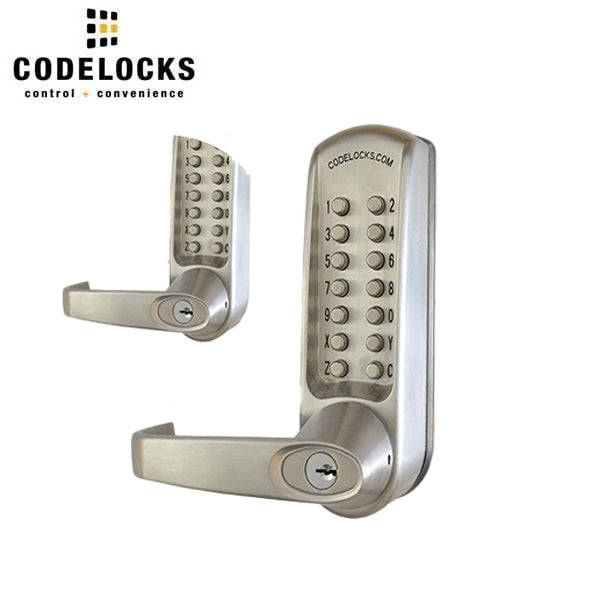

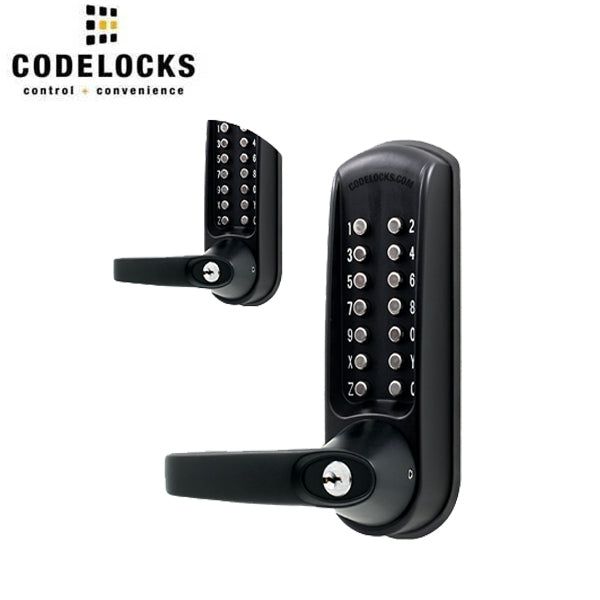

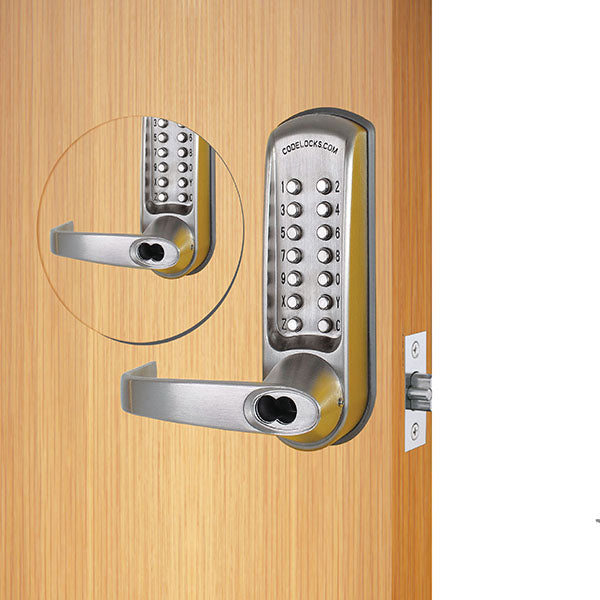

The CL610 and CL615 are heavy duty tubular mortise latch locks. The outside lever handle will retract the latch after a correct code is entered. The spring loaded latchbolt will lock automatically when the door is closed.
Quick Code change!
The CL600 range incorporating the new Quick Code system allows on door code change in seconds. Typically most mechanical digital locks require the lock to be removed from the door or partly disassembled to change the code.
Features:
- Code Free Passage Mode Function: The CL615 models provide a passage function. These models feature a black dot on the ‘Y’ button. When the ‘Y’ button is pressed along with a correct code input, the lever will retract the latch freely until disabled.
- Double Sided: Allows for coded entry on both sides of the door.
- Optional IC Cylinder Prep: Prepped to receive a Small Format Interchangeable Core. SFIC Core is not included.
- Tubular Latchbolt
- Tested to Grade 2 - ANSI - A156.2
- 3-hour UL 10C certification
- Internal doors and external doors
- Quick Code change - no need to remove lock from door
- Mechanical Codelock
- Lever handle lock for doors hung on the left or right
- Available in brushed steel or marine grade black
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
Following the success of the mechanical marine grade lock range and due to high customer demand, Codelocks have further expanded the Marine range.
As well as existing CL200, CL400 and CL500 lock models, the expansion to the range now includes selected locks from the CL600 mechanical range, offering the benefits of on-the-door code changes, key override and full size lever handles.
The Marine by Codelocks mechanical lock range have been specially enhanced to withstand harsh outdoor environments and coastal applications. Reliable and durable, the marine grade black finish has proven to be resistant against moisture and salt spray, following rigorous salt spray testing for up to 1000 hours*.
Specifications:
| Brand |
Code Locks |
| Buttons |
2 x 7 |
| Door Thickness | 1-3/4" 2-3/8" |
| Code Change Method |
Tumblers (Off door) |
| Codes |
Single code storage - 8,191 non-sequential combinations available |
| Material | Zinc Alloy |
| Finish Color | Brushed Steel, Marine Grade |
| Handed |
Non-handed |
| Keypad |
14 Stainless Steel Buttons |
| Spindle | Two part 5⁄16" (8mm) spring loaded spindle |
| Lock Material | Zinc Alloy |
| Orientation | Vertical |
| Manufacturer Warranty | Limited Lifetime Warranty |
Downloads:
