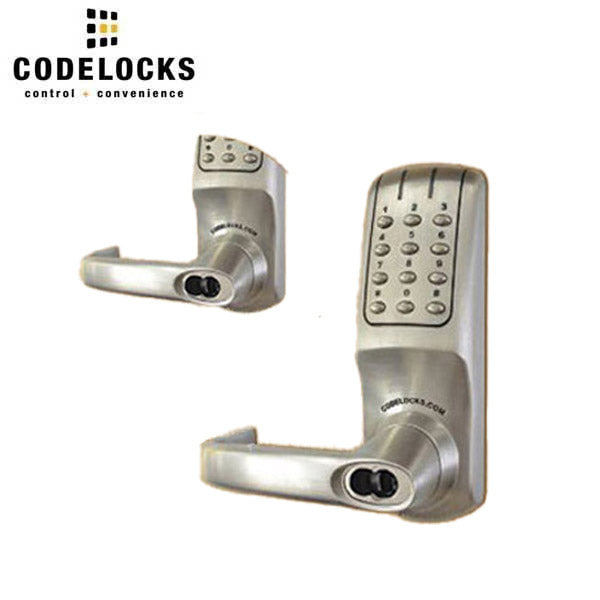

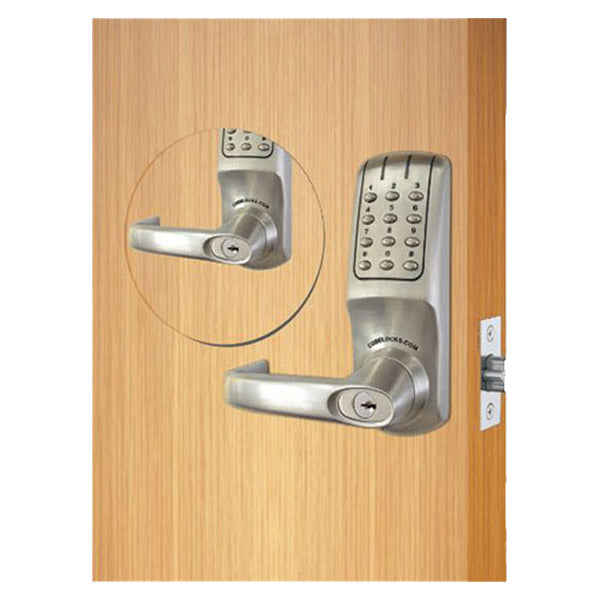

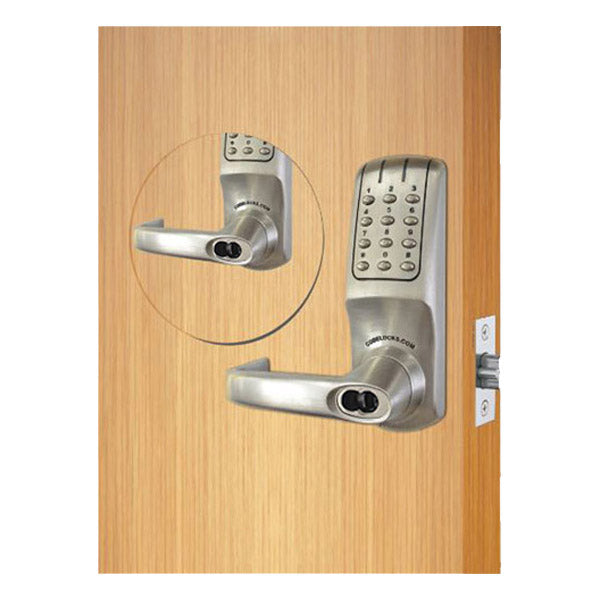

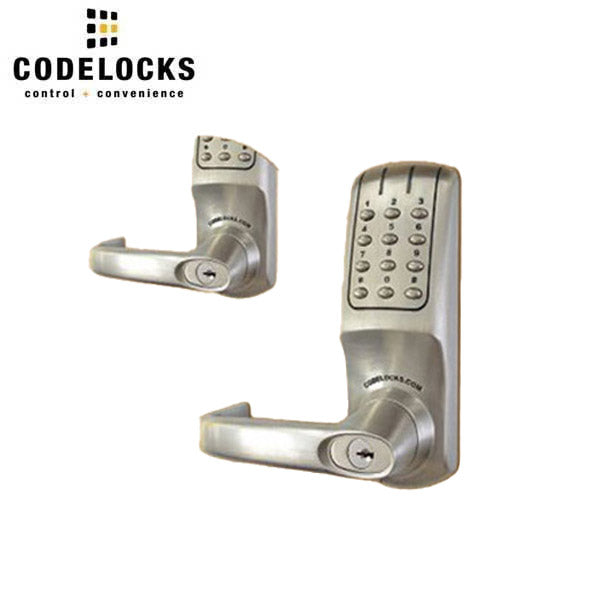

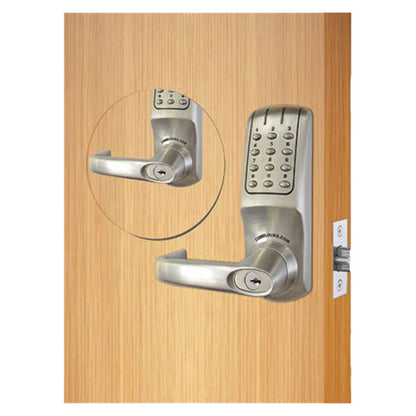

CodeLocks - CL5210 - Electronic Door Lock - Optional Backset - Tubular Latchbolt - Double Sided - Optional Cylinder Prep - Brushed Steel - Fire Rated - Grade 2
Available to Order
SKU:
CDL-CL5210BB-IC-BS-70
NSID:
43762
43761
43760
43759
- $443.31
-
$788.10 - $443.31
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
CDL-CL5210
The CL5210 has a conventional 3x4 button keypad layout for instant familiarity, providing quick programming with a multiple range of functions. Medium duty tubular latch retracts via the outside knob after a valid code input. When the door closes, the spring latch will lock the door. Particularly suitable for use in health, educational, commercial and residential environments.
Features
- Double Sided: Allows for coded entry on both sides of the door.
- Optional IC Cylinder Prep: Prepped to receive a Small Format Interchangeable Core. SFIC Core is not included.
- 3-hour UL 10C certification
- Allows up to 80 User Codes
- Allows up to 10 one-time User Codes to be entered
- PVD low maintenence finish
- Brushed Steel finish
- Over 200,000 operations from 4 x AA cells (provided)
- Tamper time out and low battery warning
- Connections for remote release by reception desk button
- Alarm release included
- Code Free entry
- Lever handle lock for doors hung on the left or right
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
Specifications
| Brand | Codelocks |
| Buttons | 3 x 4 |
| Code Change Method | Keypad (On Door) |
| Codes | User Codes 4, 5 or 6 digits long |
| Door Thickness | 1 3⁄8" - 2 3⁄8" (35mm - 60mm) |
| Finish | Brushed Steel |
| Handed | Non-Handed - Locks will fit doors hung on the left or right |
| Keypad | 12 Individual stainless steel buttons |
| Latch Type | Tubular Latchbolt |
| Lock Material | Zinc Alloy |
| Low Battery Warning | Red LED will flash on opening to indicate low battery |
| Memory | Stores up to 80 User Codes |
| Operations | Up to 200,000 per set of 8 x AAA batteries |
| Orientation | Vertical |
| Power | 4x AA |
| Spindle | Two part 5⁄16" (8mm) spring loaded spindle |
| Suitable For | Internal, External |
| User Types | Code |
| Fire Rated | 3-hour UL 10C |
| Certifications | Grade 2 ANSI A156.2 / A156.25, UL/ULC |
