CodeLocks - CL510 - Mechanical Lock - Heavy Duty - Optional Backset - Tubular Latch Bolt - Stainless Steel
Available to Order
SKU:
CDL-CL510-SS-70
NSID:
27850
43751
- $190.01
-
$337.80 - $190.01
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
CDL-CL510-SS

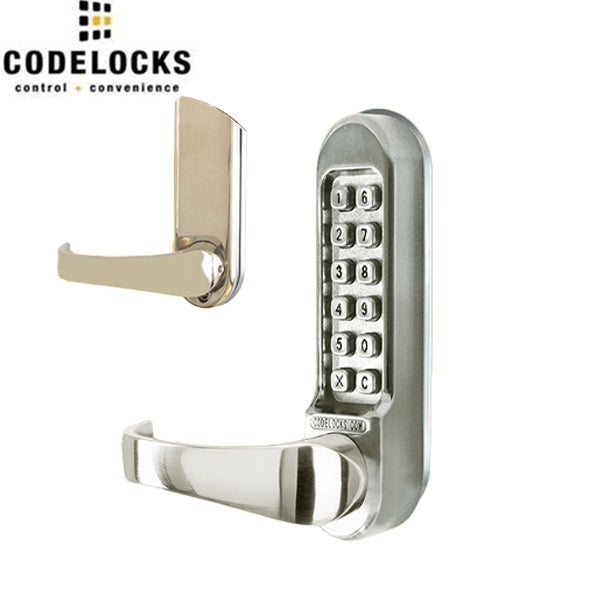

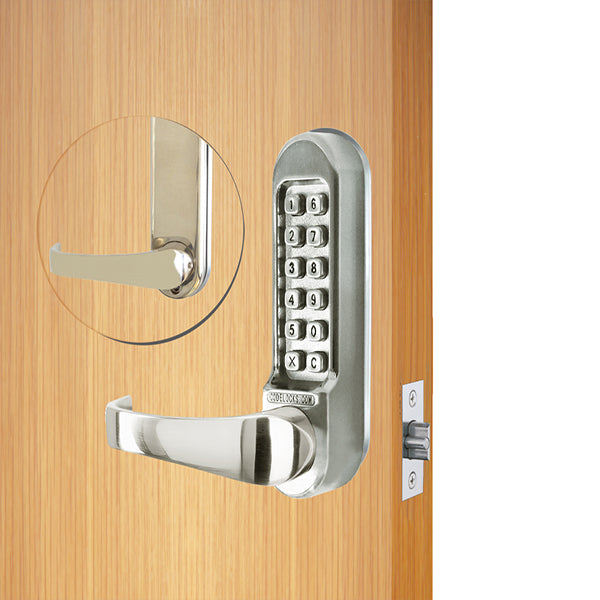

The CL510 is a heavy-duty push-button tubular latch bolt. The outside lever handle will retract the latch after a correct code is entered. The spring-loaded latch bolt will lock automatically when the door is closed.
Features:
- Large full-size lever handles with a return to the door
- Suitable for interior and exterior use
- Heavy Duty deadlocking tubular latch. Latch retracts by turning the inside handle freely, or the outside handle after code input.
- Butterfly spindle not required.
- Tumbler alignment for easy code change
- Large three coil lever return spring suitable for high traffic use
- Selected models available in stainless steel or polished brass finish
- Neoprene seals included
| Brand |
Code Locks |
| Buttons |
2 x 6 |
| Code Change Method |
Tumblers (Off door) |
| Codes |
2,047 non-sequential code combinations available |
| Material | Zinc Alloy |
| Handed |
Non-handed |
| Keypad |
12 Stainless Steel Buttons |
| Latch Type | 2 3/4" or 2 3/8" Tubular Latch Bolt |
| Lock Dimensions | 177mm (7") x 48mm (1 ⅞) |
| Orientation | Vertical |
| Spindle | Two-part 8mm (5⁄16) spring-loaded spindle |
| Manufacturer Warranty | Limited Lifetime Warranty |
