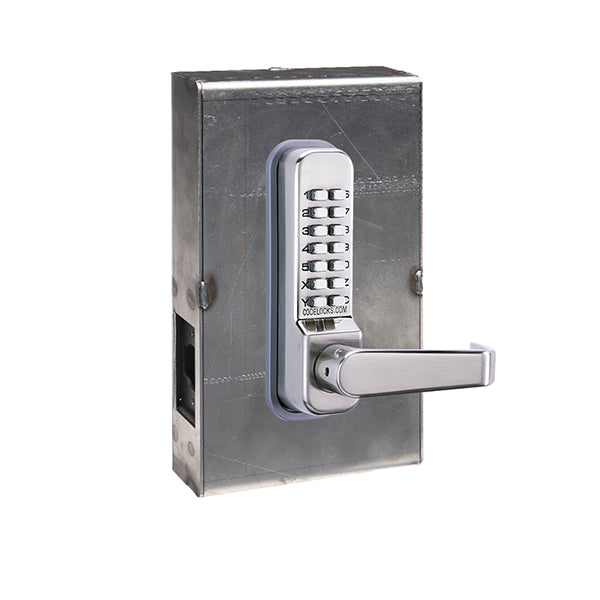

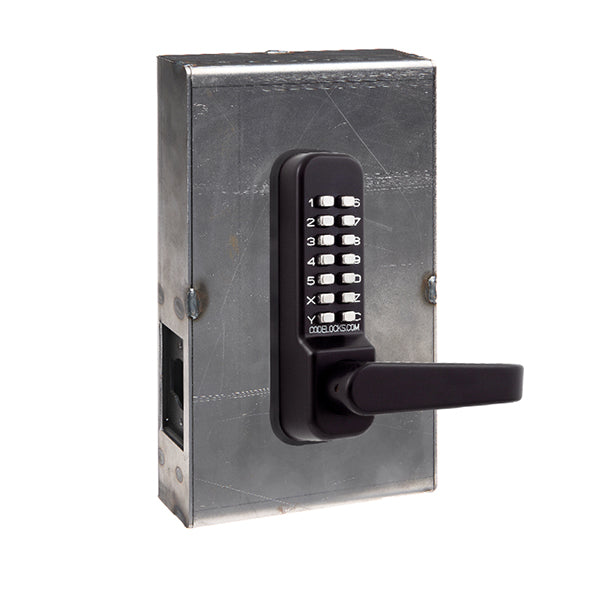

CodeLocks - CL415 Gate Box Kit - Mechanical Lock - Medium Duty - Tubular Latch Bolt Gate Box Kit - Passage Function - Optional Finish
Available to Order
SKU:
CDL-91817
NSID:
48648
48649
- $319.72
-
$390.30 - $319.72
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
CDL-91817 / CDL-97569
The CL415 is a medium-duty push button tubular latch bolt. The outside lever handle will retract the latch after a correct code is entered. The spring-loaded latch bolt will lock automatically when the door is closed.
Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.
Features:
- Code Free Passage Mode Function: The CL415 models provide a passage function. These models feature a black dot on the ‘Y’ button. When the ‘Y’ button is pressed along with a correct code input, the lever will retract the latch freely until disabled.
- Marine Grade Finish: The Marine by Codelocks range features a selection of locks that have been specially enhanced to withstand harsh outdoor environments and coastal applications. Reliable and durable, the marine grade black finish has proven to be resistant against moisture and salt spray, following rigorous salt spray testing for up to 1000 hours*.
- Internal doors and external doors
- Mechanical Codelock
- Medium duty tubular latch bolt
- Lever handle lock for doors hung on the left or right
- 14-gauge weldable steel boxes with pre-drilled fixing holes
- Complete kit with all required components
- Supplied as raw steel, ready to paint
- Adjustable strike bracket with U-bolt fastener
- Easy, effective gate and fence installation
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home

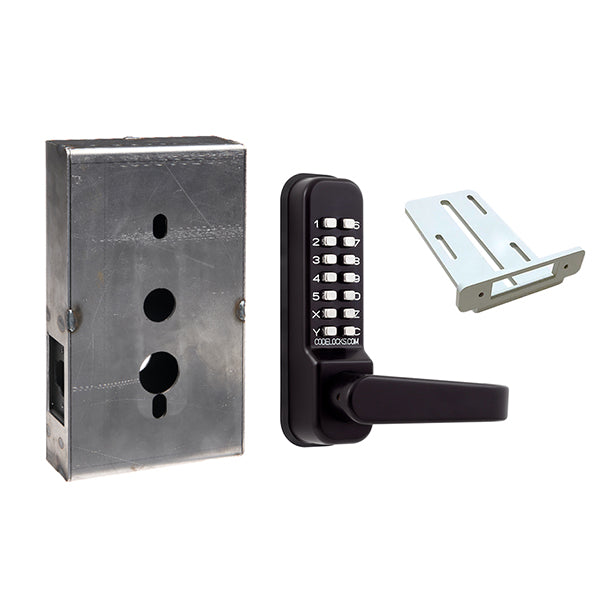

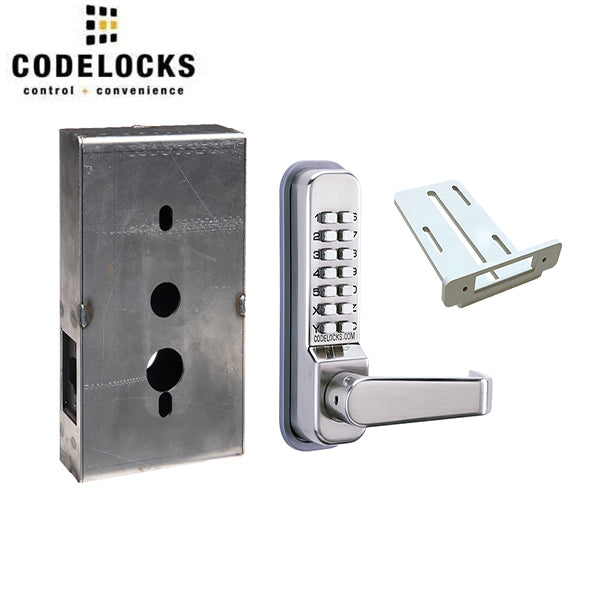

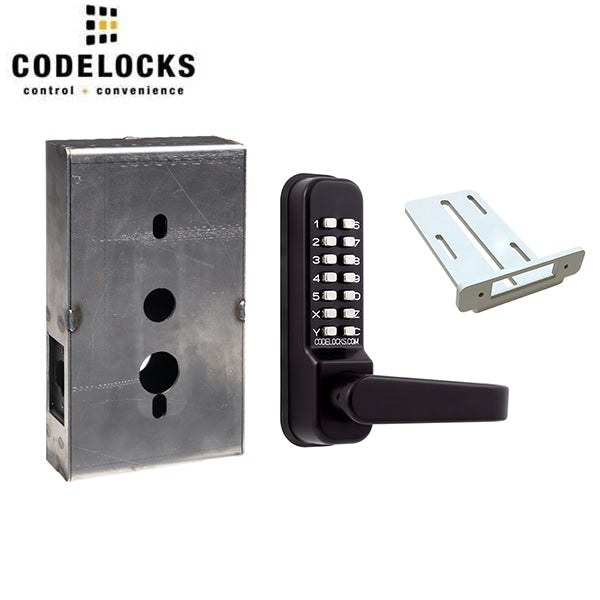

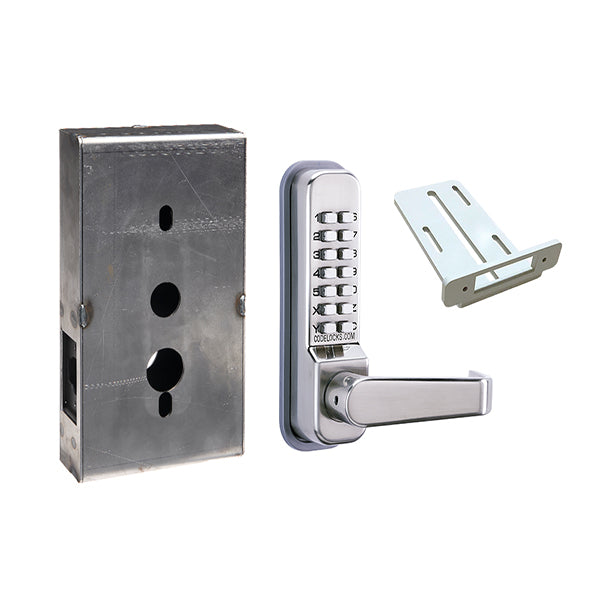

Gate Box Kit Components
- CL415 Tubular Latchbolt
- Codelocks installation, operating/programming instructions, fastening bolts and latch
- 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
- 16-gauge steel, adjustable latch bracket
Following the success of the mechanical marine grade lock range and due to high customer demand, Codelocks have further expanded the Marine range.
As well as existing CL200, CL400 and CL500 lock models, the expansion to the range now includes selected locks from the CL600 mechanical range, offering the benefits of on-the-door code changes, key override and full size lever handles.
The Marine by Codelocks mechanical lock range have been specially enhanced to withstand harsh outdoor environments and coastal applications. Reliable and durable, the marine grade black finish has proven to be resistant against moisture and salt spray, following rigorous salt spray testing*.
| Brand |
Code Locks |
| Gate Box Dimensions | 9.5” (H) x 5.5” (W) x 1.75” (D) |
| Gate Box Material | 14-gauge steel |
| Buttons |
2 x 7 |
| Code Change Method |
Tumblers (Off door) |
| Codes |
Single code storage - 8,191 non-sequential combinations available |
| Material | Zinc Alloy |
| Finish Color | Marine Grade Black, Silver |
| Handed |
Non-handed |
| Keypad |
14 Stainless Steel Buttons |
| Latch Type | Tubular Latchbolt |
| Lock Material | Zinc Alloy |
| Lock Dimensions | 177mm (7") x 48mm (1 ⅞) |
| Orientation | Vertical |
| Manufacturer Warranty | Limited Lifetime Warranty |
