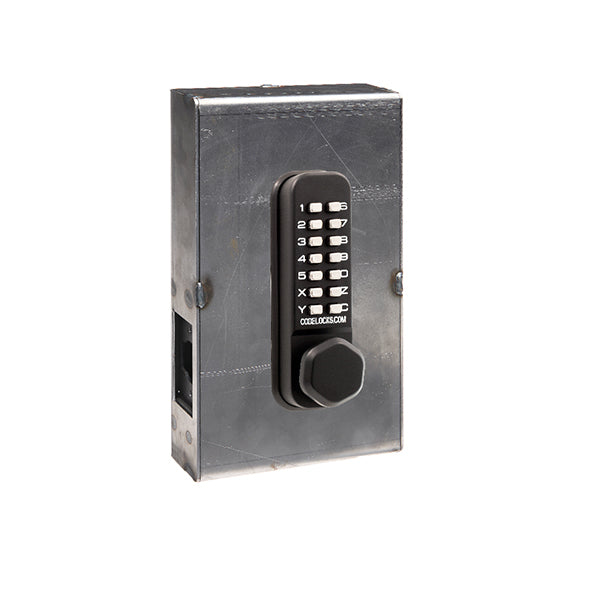

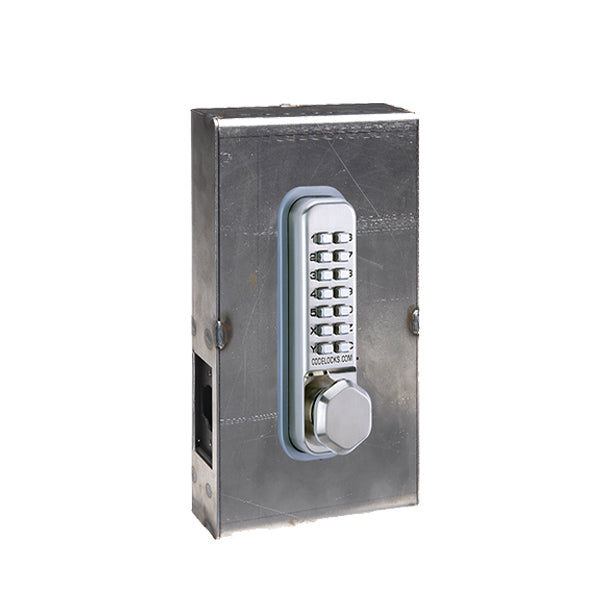

CodeLocks - CL290 Gate Box Kit - Mechanical Lock - Light Duty - Dual Backset Deadlatch 2 3/8" - 2 3/4" Mortise Tubular Latchbolt Gate Box Kit - Code In / Out - Key Override - Optional Finish - Fire Rated - Grade 2
- $299.61
-
$352.50 - $299.61
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
CDL-CL290
The CL290 is a light duty mortise latch with dual backplate. The latch is spring loaded and will lock automatically when the door is closed. The latch bolt has a deadlocking plunger feature to prevent unlawful shimming of the latch. The lock has a slide button which can be used to hold open the latchbolt for free entry without operating the code (when the lock is not required to be operational).Function can be disabled on installation requiring code to be entered every time to open door.
Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.
Features
- Key Override: Allow Locks to be overridden via a key.
- Optional Marine Grade Finish: The Marine by Codelocks range features a selection of locks that have been specially enhanced to withstand harsh outdoor environments and coastal applications. Reliable and durable, the marine grade black finish has proven to be resistant against moisture and salt spray, following rigorous salt spray testing for up to 1000 hours*.
- Back to back: Two coded plates for installation on both sides of the door.
- Mechanical Codelock
- Light duty mortise latch with dual backplate
- Hexagonal beveled handle and lock case
- Available in stainless steel, marine grade black
- 14-gauge weldable steel boxes with pre-drilled fixing holes
- Complete kit with all required components
- Supplied as raw steel, ready to paint
- Adjustable strike bracket with U-bolt fastener
- Easy, effective gate and fence installation
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home

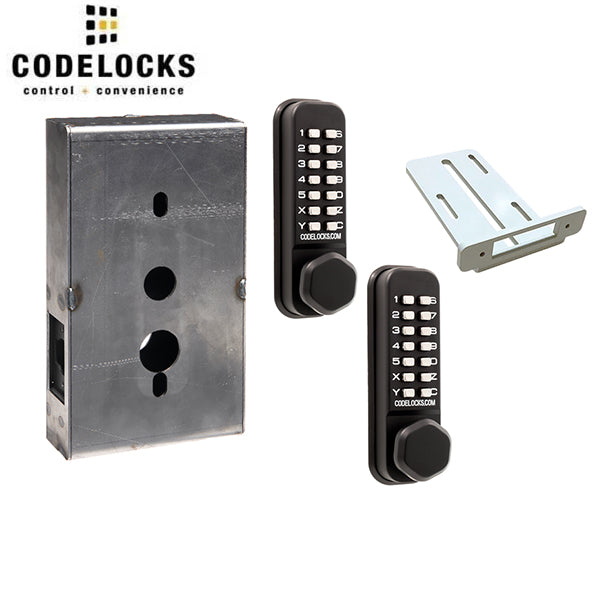

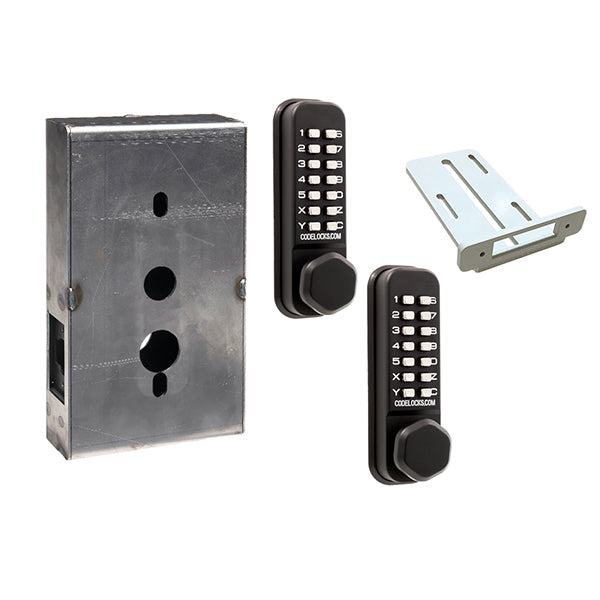

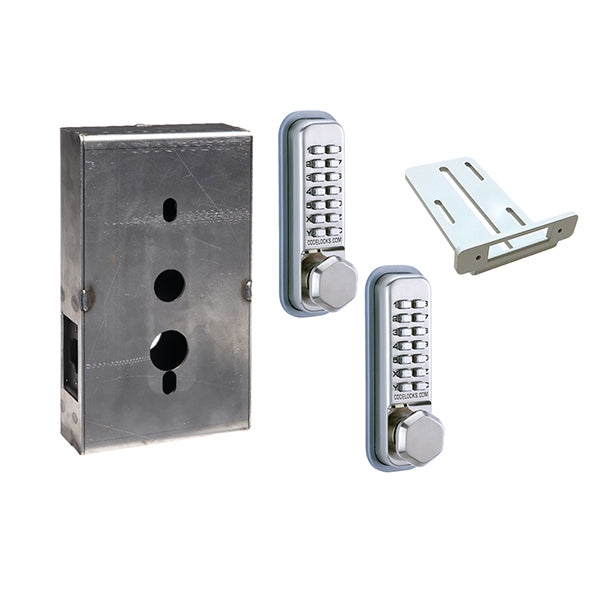

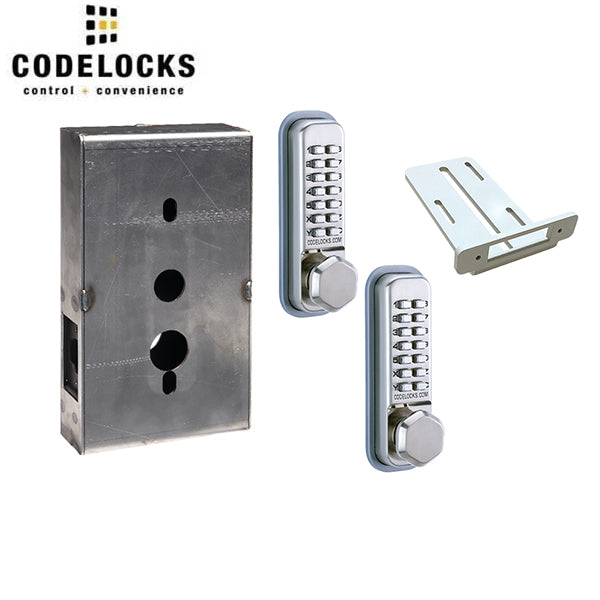

Gate Box Kit Components
- CL290 Tubular Latchbolt
- Codelocks installation, operating/programming instructions, fastening bolts and latch
- 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
- 16-gauge steel, adjustable latch bracket
| Brand | Codelocks |
| Gate Box Dimensions | 9.5” (H) x 5.5” (W) x 1.75” (D) |
| Gate Box Material | 14-Gauge Steel |
| Buttons | 2 x 7 |
| Code Change Method | Keypad (On Door) |
| Codes | 8,191 non sequential code combinations available |
| Code Storage | Single Code |
| Door Thickness | 1 3⁄8" - 2 3⁄8" (35mm - 60mm) |
| Finish | Stainless Steel / Black |
| Handed | Non-Handed - Locks will fit doors hung on the left or right |
| Keypad | 14 Individual stainless steel buttons |
| Latch Type | Tubular Latchbolt |
| Lock Material | Zinc Alloy |
| Orientation | Vertical |
| Spindle | Flat spring loaded spindle |
| Suitable For | Internal, External |
| User Types | Code |
| Fire Rated | 3-hour UL 10C |
| Certifications | Grade 2 ANSI A156.2 / A156.25, UL/ULC |
Dual Backset Deadlatch
