CodeLocks - CL255 Gate Box Kit - Mechanical Lock - Light Duty - Dual Backset Deadlatch 2 3/8" - 2 3/4" - Mortise Tubular Latchbolt Gate Box Kit - Holdback Feature - Optional Key Override - Optional Finish - Fire Rated - Grade 2

Available to Order
SKU: CDL-93901
NSID: 48656 48657 48658

Please Note: This product ships within 8 Days

$299.05
$351.60
$299.05
Options: Keyed Override - Stainless Steel

The CL255 is a light duty lock that utilizes a tubular latch. The latch is spring loaded and will latch automatically when the door is closed. The deadlocking plunger on the latchbolt prevents the latch from being shimmed open. The slide button on the backplate of the lock can be used to hold the latchbolt in a retracted position. When in use with the latchbolt retracted, the door will not latch and can be opened without requiring a code to be entered. If use of the holdback feature is not desired, it can be disabled when the lock is installed on the door.

Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.

Features

  • Optional Key Override: Allow Locks to be overridden via a key.
  • Optional Marine Grade Finish: The Marine by Codelocks range features a selection of locks that have been specially enhanced to withstand harsh outdoor environments and coastal applications. Reliable and durable, the marine grade black finish has proven to be resistant against moisture and salt spray, following rigorous salt spray testing for up to 1000 hours*.
  • Hold back feature: Latch models are supplied with a hold back feature enabled allowing free entry when required, without having to use a code. The function can be disabled during installation requiring code input to open the door.
  • Mechanical Codelock
  • Light duty mortise latch with dual backplate
  • Hexagonal bevelled handle and lock casel
  • 14-gauge weldable steel boxes with pre-drilled fixing holes
  • Complete kit with all required components
  • Supplied as raw steel, ready to paint
  • Adjustable strike bracket with U-bolt fastener
  • Easy, effective gate and fence installation
  • Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
Call 1-800-878-6604 for Bulk / Dealer Pricing!
Description

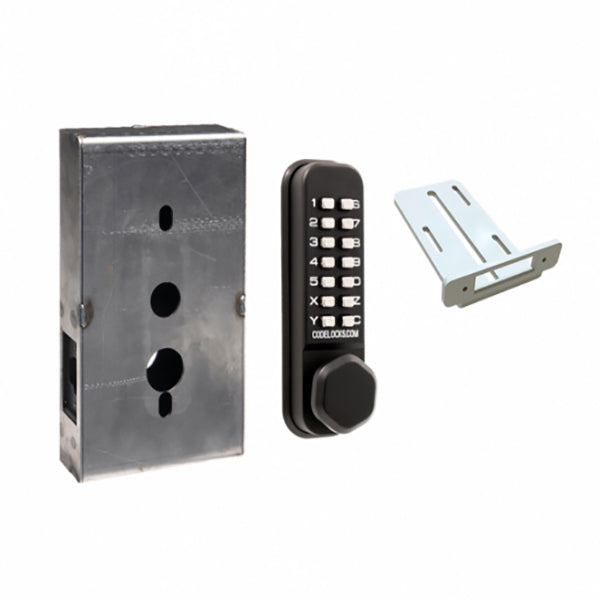

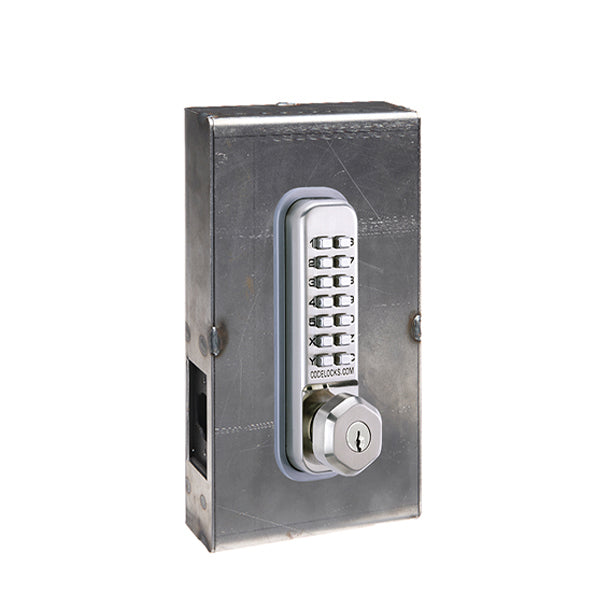

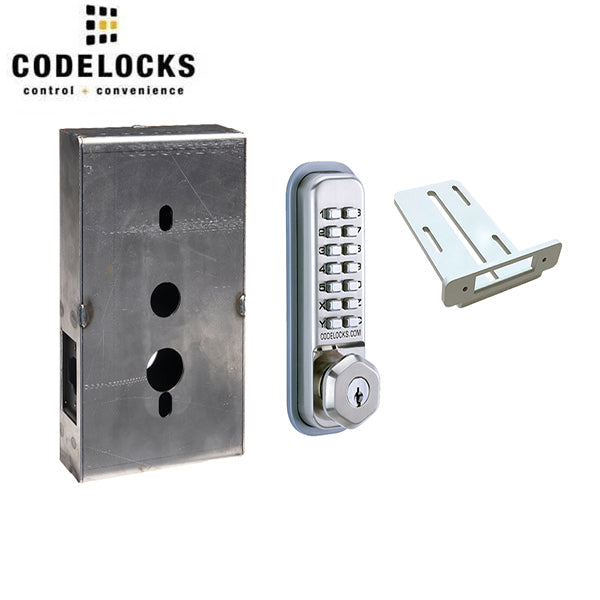

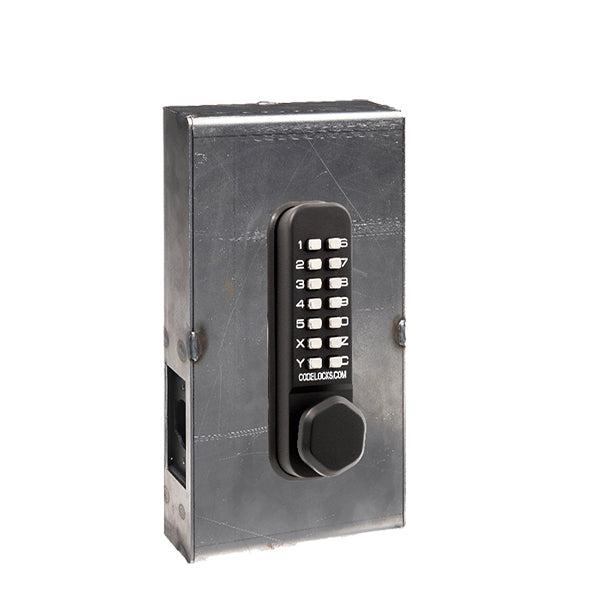

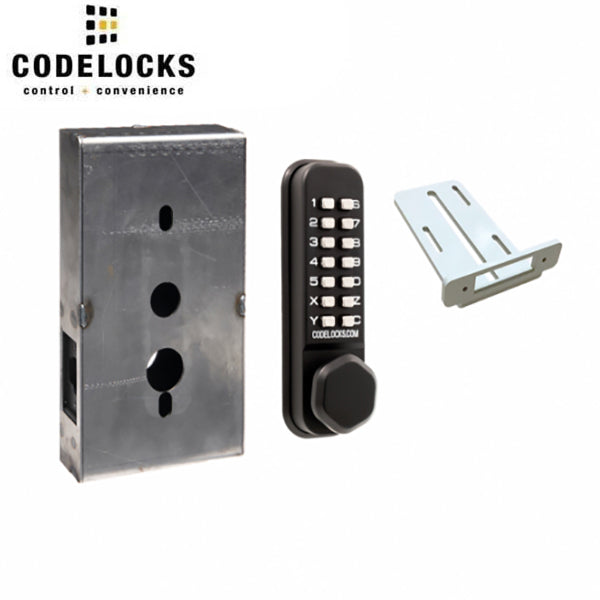

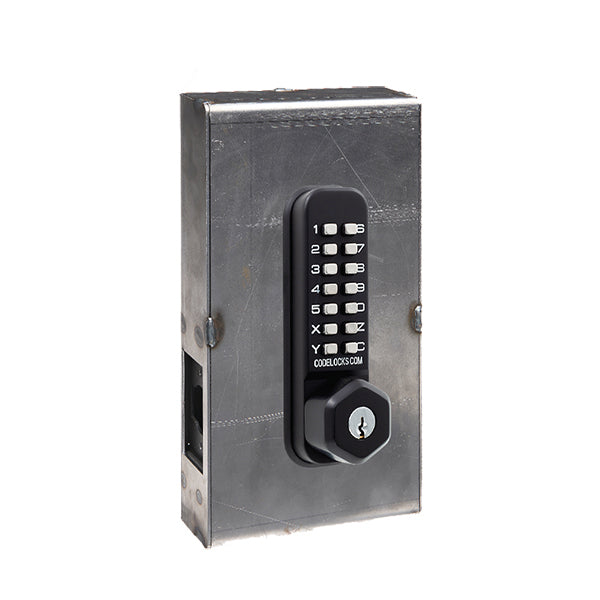

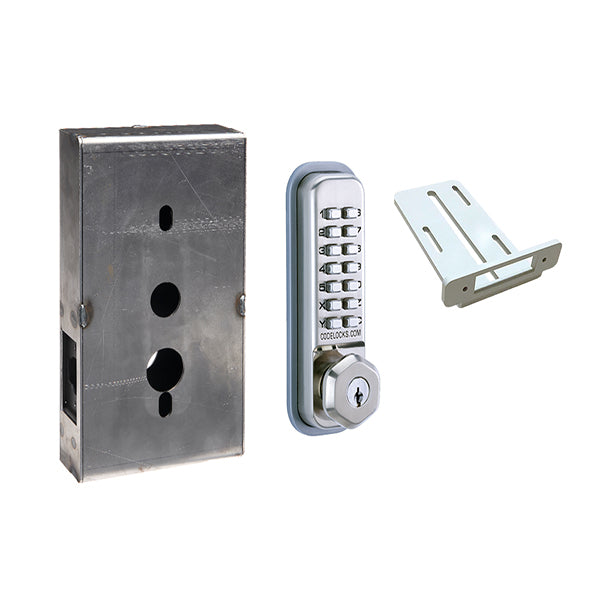

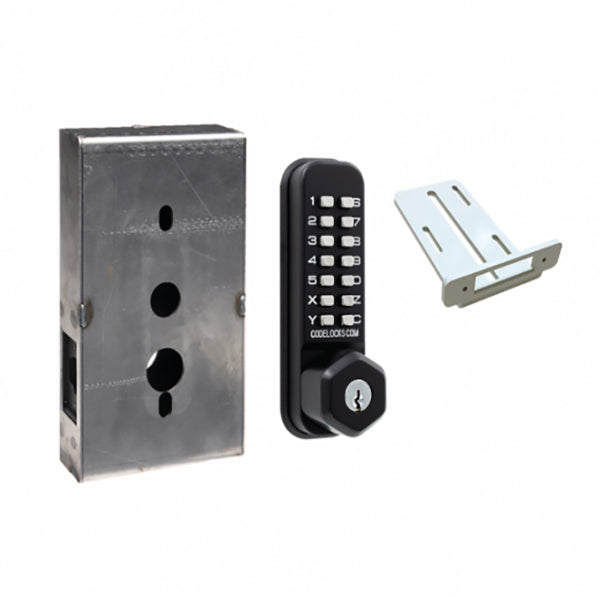

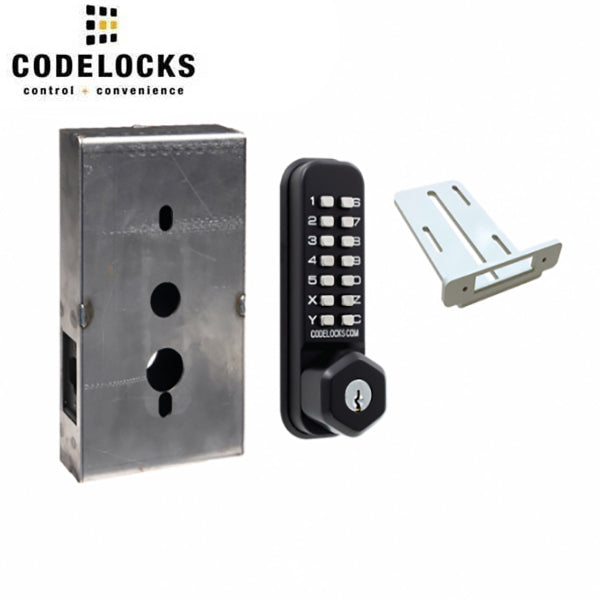

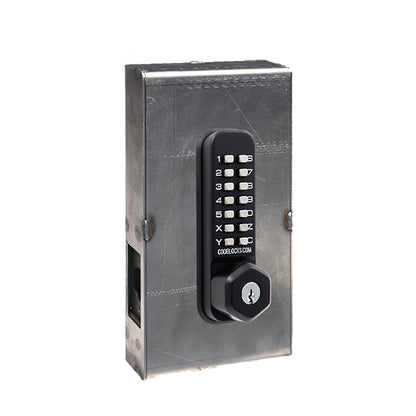

Gate Box Kit Components

  • CL255 Tubular Deadbolt with Key Override
  • Codelocks installation, operating/programming instructions, fastening bolts and latch
  • 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
  • 16-gauge steel, adjustable latch bracket

Following the success of the mechanical marine grade lock range and due to high customer demand, Codelocks have further expanded the Marine range.
As well as existing CL200, CL400 and CL500 lock models, the expansion to the range now includes selected locks from the CL600 mechanical range, offering the benefits of on-the-door code changes, key override and full size lever handles.
The Marine by Codelocks mechanical lock range have been specially enhanced to withstand harsh outdoor environments and coastal applications. Reliable and durable, the marine grade black finish has proven to be resistant against moisture and salt spray, following rigorous salt spray testing*.
    Brand Codelocks
    Gate Box Dimensions 9.5” (H) x 5.5” (W) x 1.75” (D)
    Gate Box Material 14-gauge steel
    Buttons 2 x 7
    Code Change Method Keypad (On Door)
    Codes 8,191 non sequential code combinations available
    Code Storage Single Code
    Door Thickness 1 3⁄8" - 2 3⁄8" (35mm - 60mm)
    Finish Stainless Steel / Black
    Handed Non-Handed - Locks will fit doors hung on the left or right
    Keypad 14 Individual stainless steel buttons
    Latch Type Tubular Latchbolt
    Lock Material Zinc Alloy
    Orientation Vertical
    Spindle Flat spring loaded spindle
    Suitable For Internal, External
    User Types Code
    Fire Rated 3-hour UL 10C
    Certifications Grade 2 ANSI A156.2 / A156.25, UL/ULC


    Dual Backset Deadlatch
