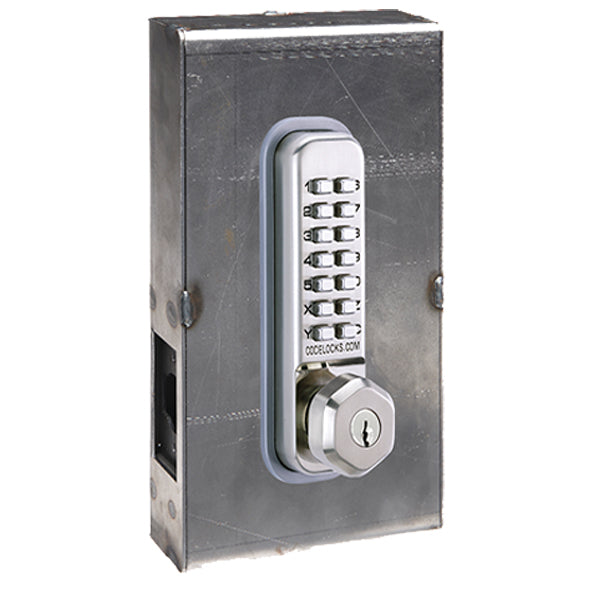

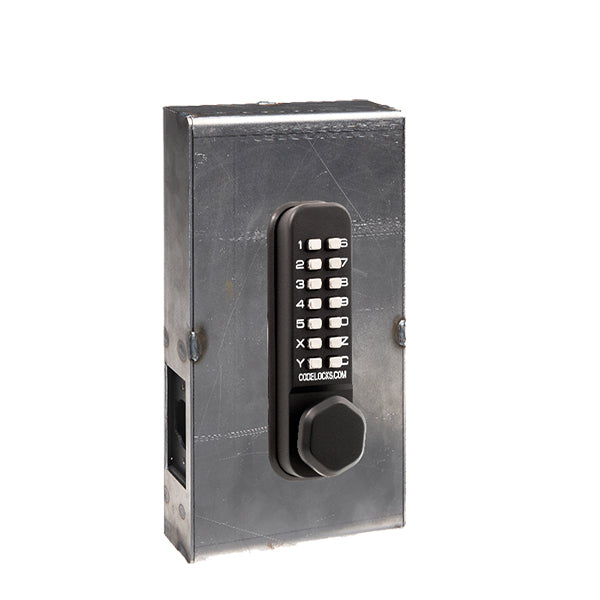

CodeLocks - CL210 Gate Box Kit - Mechanical Lock - Light Duty - Dual Backset Deadlatch 2 3/4" - 2 3/8" - Mortise Tubular Deadbolt Gate Box Kit - Optional Key Override - Optional Finish - Fire Rated - Grade 2
Available to Order
SKU:
CDL-95339
NSID:
48659
48660
- $279.62
-
$315.30 - $279.62
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
95220
The CL210 is a light duty mortise deadbolt. The bolt is moved manually by means of the outside knob after the code has been entered, and freely by the inside knob at all times.
Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.
Features
- Optional Key Override: Allow Locks to be overridden via a key.
- Optional Marine Grade Finish: The Marine by Codelocks range features a selection of locks that have been specially enhanced to withstand harsh outdoor environments and coastal applications. Reliable and durable, the marine grade black finish has proven to be resistant against moisture and salt spray, following rigorous salt spray testing for up to 1000 hours*.
- Mechanical Codelock
- Light duty tubular deadbolt
- Hexagonal beveled handle and lock case
- Available in stainless steel
- 14-gauge weldable steel boxes with pre-drilled fixing holes
- Complete kit with all required components
- Supplied as raw steel, ready to paint
- Adjustable strike bracket with U-bolt fastener
- Easy, effective gate and fence installation
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home

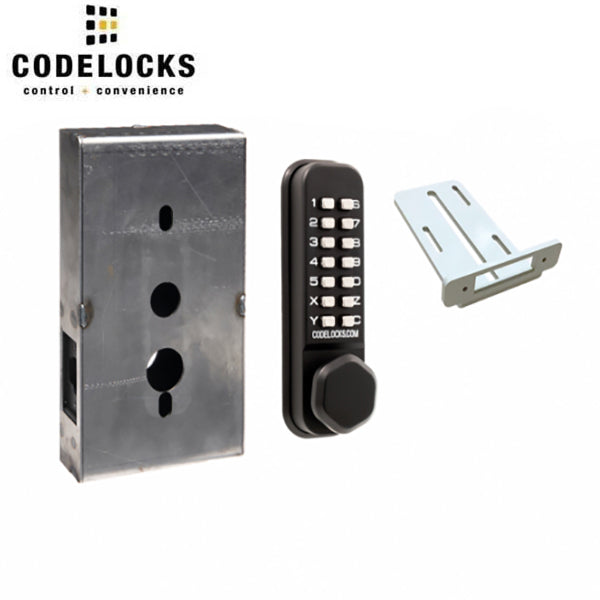

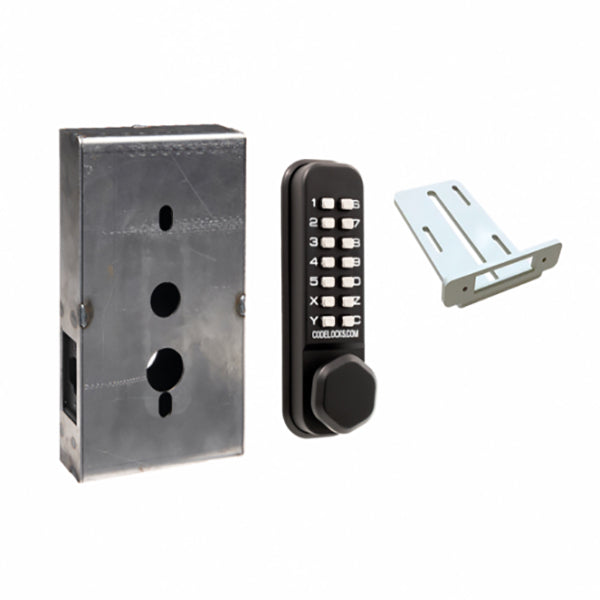

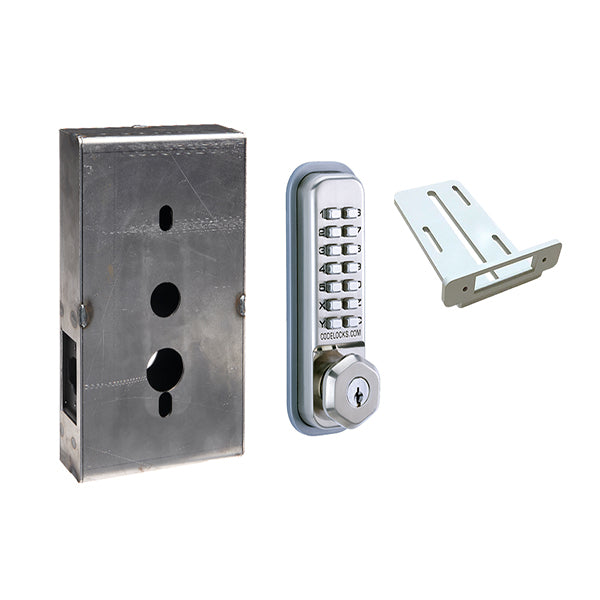

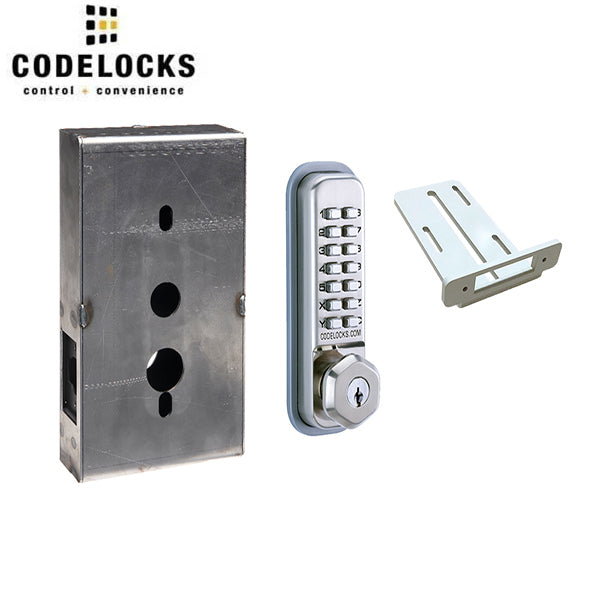

Gate Box Kit Components
- CL210 Tubular Deadbolt with Key Override
- Codelocks installation, operating/programming instructions, fastening bolts and latch
- 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
- 16-gauge steel, adjustable latch bracket
Following the success of the mechanical marine grade lock range and due to high customer demand, Codelocks have further expanded the Marine range.
As well as existing CL200, CL400 and CL500 lock models, the expansion to the range now includes selected locks from the CL600 mechanical range, offering the benefits of on-the-door code changes, key override and full size lever handles.
The Marine by Codelocks mechanical lock range have been specially enhanced to withstand harsh outdoor environments and coastal applications. Reliable and durable, the marine grade black finish has proven to be resistant against moisture and salt spray, following rigorous salt spray testing*.
Specifications
| Brand | Codelocks |
| Gate Box Dimensions | 9.5” (H) x 5.5” (W) x 1.75” (D) |
| Gate Box Material | 14-gauge steel |
| Buttons | 2 x 7 |
| Code Change Method | Keypad (On Door) |
| Codes | 8,191 non sequential code combinations available |
| Code Storage | Single Code |
| Door Thickness | 1 3⁄8" - 2 3⁄8" (35mm - 60mm) |
| Finish | Stainless Steel, Marine Grade Black |
| Handed | Non-Handed - Locks will fit doors hung on the left or right |
| Keypad | 14 Individual stainless steel buttons |
| Latch Type | Tubular Deadbolt |
| Lock Material | Zinc Alloy |
| Low Battery Warning | Red LED will flash on opening to indicate low battery |
| Orientation | Vertical |
| Spindle | Flat spring loaded spindle |
| Suitable For | Internal, External |
| User Types | Code |
| Fire Rated | 3-hour UL 10C |
| Certifications | Grade 2 ANSI A156.2 / A156.25, UL/ULC |
Dual Backset Deadlatch
