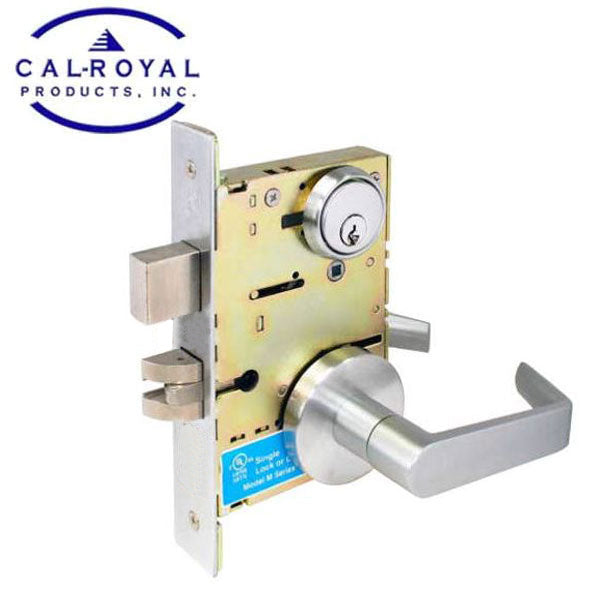

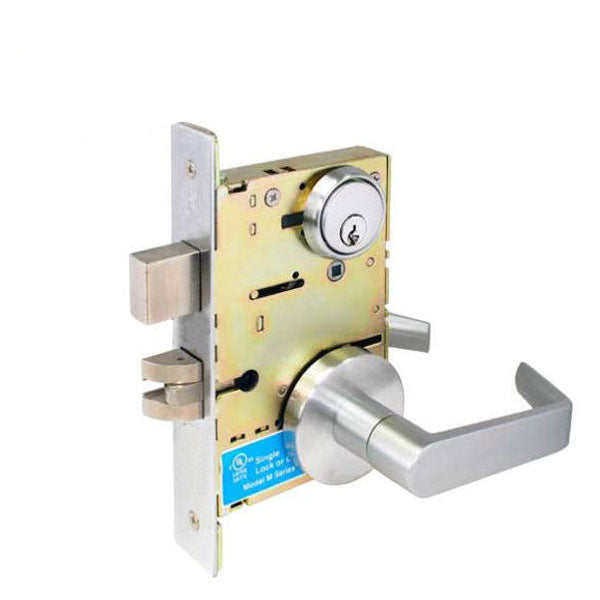

Cal-Royal - SC8465 - SC Series Mortise Lock - Heavy Duty - Storeroom - SS Lever - 2 3/4" Backset - Satin Chrome - Fired Rated - Grade 1
In Stock
SKU:
CRL-SC8465-US26D
NSID:
38378
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $199.76
-
$228.00 - $199.76
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Features:
- Can retrofit Schlage L9000 Series mortise lock without drilling any additional holes on the door for sectional and escutcheon trims
- Fully reversible design
- No exposed mounting screws on the outside and inside trims
- The outside lever has a Clutch (Free-Wheeling design). The lever rotates when the lever is locked preventing excessive force from being applied to the horizontal lever. The design decreases the chance of the lever being broken or damaged
- Lock body conforms to all dimensional and operational performances of ANSI A156.13, Grade 1, exceeds 1,000,000 cycles
Specifications:
| Function: | F07 - Storeroom |
| Door Thickness: | 1-3/4” (44.5mm) standard |
| Handing: | Field Reversible |
| Backset: | 2-3/4" (70mm) |
| Strike: | Brass or stainless steal strike: ANSI Standard A115.1; curve lio with dust box |
| Lock Case: | Heavy Duty wrought steel, zinc dichromate plate |
| Center to Center: | Center of the lever to center of the cylinder is 3-7/8” (98mm) |
| Faceplate: | Brass or stainless steel; 8” x 1 7/32” (203mm x 31.3mm); ANSI Standard A115.1 |
| Deadbolt: | 1” (25.4mm) throw; hardened stainless steel |
| Latch Bolt: |
3/4” (19mm) throw; one-piece stainless steel with anti-friction reversible tongue |
| Cylinder: | 6-pin solid brass “C” keyway |
| Trims: | Sectional Trim, SS Lever |
| Toggle Button: | High rust-resistant chrome plated zinc alloy |
| Auxiliary Latch: | Stainless Steel, non-handed |
| Finishes: | 26D Satin Chrome |
| Fire Rated: | 3-hour fire door |
| Certifications: | ANSI / BHMA A156.13 Grade 1. Meets ADA, UL/cUL Listed |
