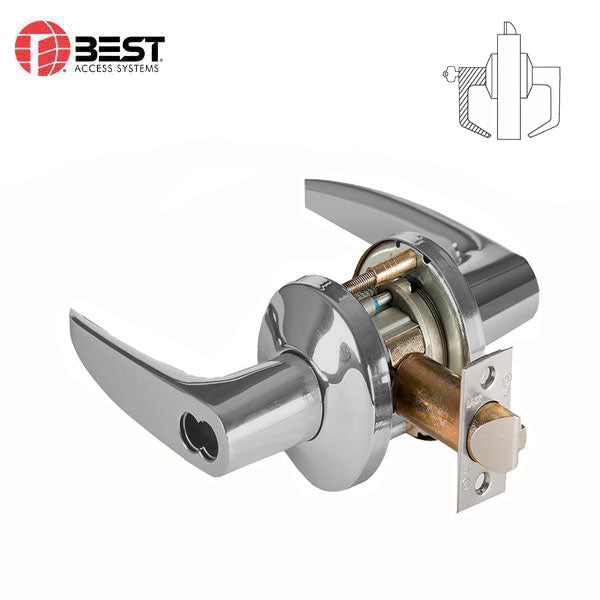

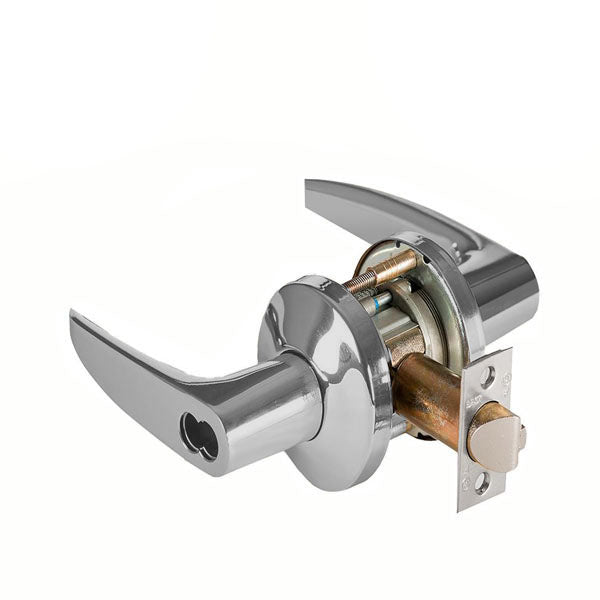

BEST - 9K-37AB16KSTK - Cylindrical Lock Lever Set - 16 Lever - SFIC Less Core - Satin Chrome - Storeroom - Grade 1
Available to Order
SKU:
BEST-9K37AB16KSTK626
NSID:
67604
- $519.62
-
$576.00 - $519.62
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Building on BEST’s legacy of innovation, the 9K series cylindrical lock combines top quality materials and exceptional craftsmanship into a tough, dependable, long-lasting security solution. We designed the 9K series to be low maintenance, easy to install, durable, and secure. And our range of available styles and finishes ensures that the 9K delivers design aesthetics to match a wide variety of applications.
Features
- Exceeds Grade 1 security
- Pre-assembled heavy-duty chassis
- Hardened steel thru-bolt studs
- Cast construction lock hub
- Intruder function option
- Low profile rose design
- Lost Motion feature allowing 45º lever rotation
- Interchangeable core allows for quick re-keying
Specifications
| Lock Function | Storeroom |
| Handing | Non-Handed |
| Levers | 16 Lever - Curved no return |
| Door Thickness | 1-3/4" to 2 1/4" |
| Cylinder | 7-pin housing accepts all Best cores - Not Included |
| Rose | D - Rose 3" convex - no ring |
| Backset | 5" |
| Chassis | 2 1/16" diameter to fit 2 1/8" hole in door |
| Latchbolt | Solid brass 9/16" throw. Front 2-1/4" x 1-1/8" beveled |
| Strike | 2-3/4" x 1-1/8" with curved lip & box |
| Projection on Door | 2-3/4" when mounted on 1-3/4" door |
| Finish | 626 - Satin Chrome |
| Certifications |
ANSI/BHMA A156.2 Series— Grade 1 ANSI A117.1 Accessibility Code (ADA compliant) UL/cUL listed (3 hour) forsingle or double swinging doors Florida Building Code andMiami Dade County (WS option) compliant for hurricane resistance |
| Manufacturer Warranty | 10-Year Mechanical |
