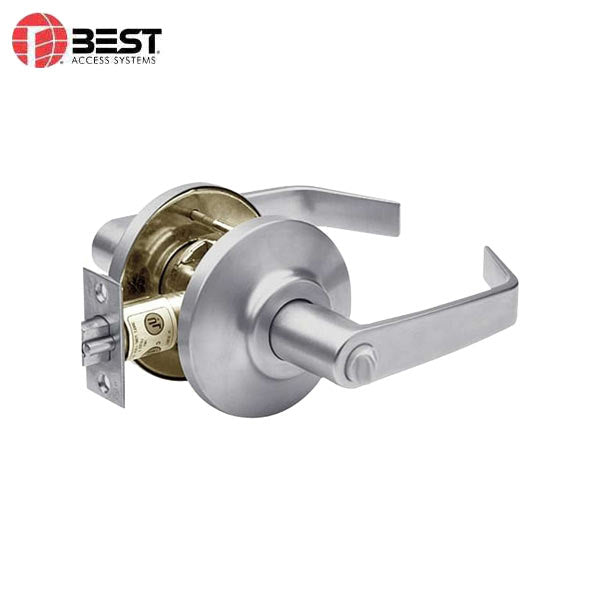

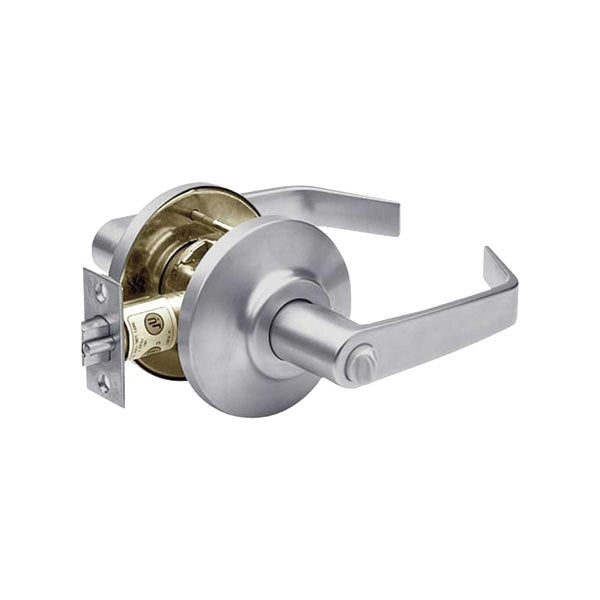

BEST - 7KC30L15DS3626 - Privacy Cylindrical Lock - Fire Rated - 15 Lever - Satin Chrome - Grade 2
Out of Stock
SKU:
BEST-7K-C3OL15D-S3-626
NSID:
32819
- $217.56
-
$249.99 - $217.56
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Best 7KC30L15DS3626 series is one of the toughest medium-duty cylindrical locks on the market with the proven Grade 2 security. The 7KC series is used for commercial office spaces, college dorms and military bases. The Best 7KC Series are listed by the BHMA for A156.2, Series 4000, Grade 2.
Features
- Cylindrical chassis to fit common door preparation.
- Through-bolt mounting studs increase torque resistance.
- Quick rekey ing with BEST interchange able core.
- No exposed keeper hole on keyed levers for increased security.
- Hub torque spring provides extra resistance to lever sag
- Snap-on inside rose (no exposed mounting screws).
- Keyed lever is removable only after removal of core.
- Internal steel mechanisms are corrosion treated for normal atmospheric conditions.
Specifications
| Lock Function | Privacy |
| Handing | Non-Handed |
| Levers | 15 - Contour angle return design |
| Door Thickness | 1-3/8" to 2" |
| Cylinder | 7-Pin housing; accepts all BEST cores. |
| Rose | D - 3-1/2" |
| Backset | 2-3/4" standard |
| Latch | 1/2" throw deadlocking latch. Front: 2-1/4" x 1-1/8" x 5/32" standard for 2-3/4" backset |
| Strike | S3-ANSI, 4-7/8" x 1-1/4" with curved lip and box |
| Projection on Door | 2-1/2" |
| Finish | 626 - Satin Chrome |
| Certifications |
BHMA A156.2, Series 4000, Grade 2, UL Listed, Fired Rated |
| Manufacturer Warranty | 3 Year Warranty |
