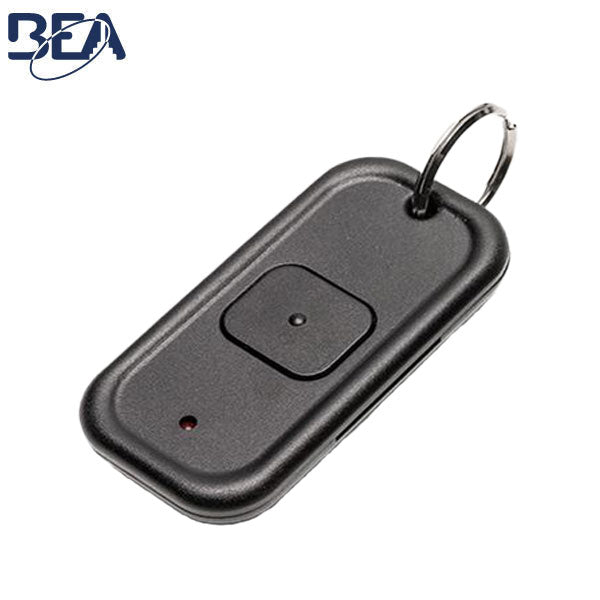

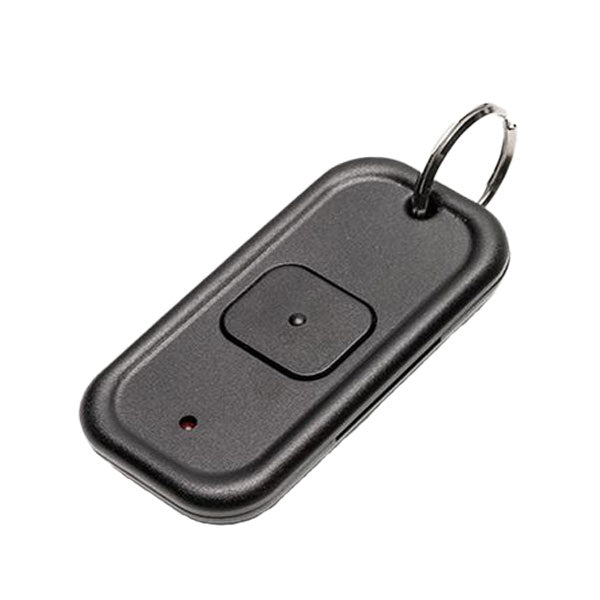

BEA - 10TD900HH1 - Long Range Wireless Transmitter - 1 Button - 900 MHZ - IP65
Available to Order
SKU:
BEA-10TD900HH1
NSID:
31904
- $44.90
-
$58.20 - $44.90
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
BEA’s 900 MHZ FAMILY compact transmitters and receiver allow wireless activation of any door control. FCC Part 15 certification ensures proper compliance with federal radio frequency regulations. 900 MHz wireless technology provides greater line-of-sight transmission distance than legacy wireless frequencies. It also provides better penetration of obstacles such as walls, partitions, doors or low-emissivity glass.
Features
- Signal Strength Indicator - Multi-color LEDs on receiver provide installer with visual notification of signal strength and activation status
- Consistent Transmission - Frequency hopping allows consistent transmission in areas with other 900 MHz devices
- Enhances Accessibility - Offers a means of activation for those with limited mobility or disabilities
- Extended Hold Functionality - Extended hold and toggle/pulse functionality is integrated for various application needs
-
Learn Modes - Delay and no-delay learn modes provide either instant or delayed activation for the sequencing of doors
Specifications
| Frequency | 908 – 918 MHz |
| Radio Control Type | Digital |
| Power Consumption | 30mA (TX) / 40mA (RX) |
| Supply Voltage | 12 – 24 VAC / VDC |
| Contact Rating | 1.0 A @ 30 VDC |
| Transmitter Capacity (per receiver) | 75 |
| LEDs | Red = Transmitting Red Blinking = Low Battery |
| Dimensions | 2 3/4” x 1 19⁄50” x 14⁄25" |
| Certifications |
FCC, IC, IP65 |
Downloads
