Baldwin Reserve - Seattle Contemporary Lever Handleset - Singl Cyl - Contemporary Square Rose - 150 - Satin Nickel - Grade 2 - RH
In Stock
SKU:
BLD-EE.SEAXSQU.R.CQE.150.6L.DS.CKY.KD
NSID:
7564
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $313.30
-
$375.96 - $313.30
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

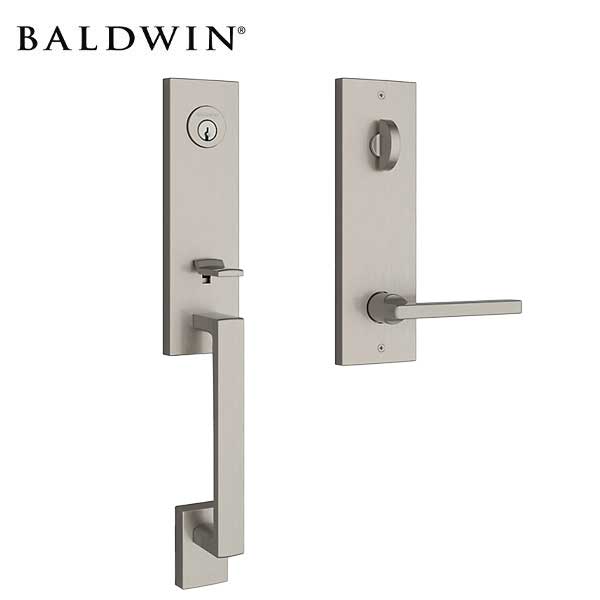

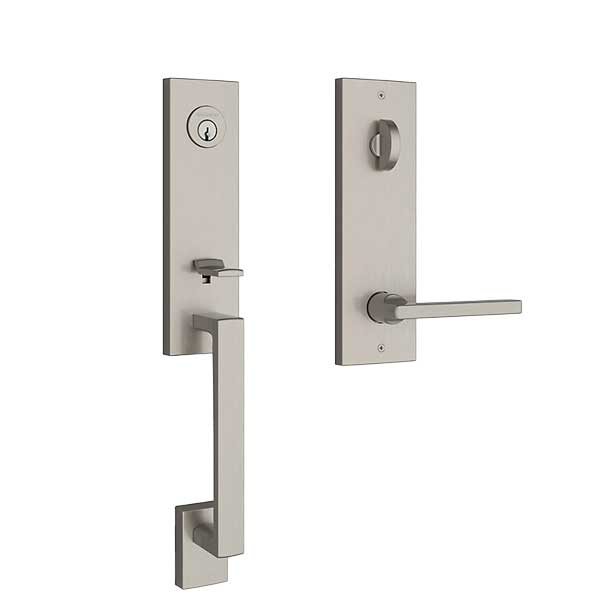

Seattle Contemporary - Single Cylinder Handleset with Contemporary Square Rose and Square Lever on Interior
Single Cylinder: Baldwin's single cylinder handleset has a keyed cylinder on the exterior and a thumbturn on the interior. Unlocking and locking the deadbolt is done by either a key on the exterior or via the thumbturn on the interior. This handleset includes both the interior and the exterior for a complete entrance solution.
Features:
- Solid forged brass construction built to last a lifetime.
- Baldwin 5-pin C-Keyway standard
- Versatility and Easy Installation:
- Adjustable Latch for both 2-3/8" and 2-3/4" backset
- Round Corner, Square Corner and Drive-In Latch Plates
- Includes both Round Corner and Square Corner Strike Plates
- Guide Post for Easy Installation
- Accommodates door thickness 1-3/8" to 2".
- 2-1/8" cross bore and 1" edge bore for latch.
- Tested to exceed ANSI/BHMA Grade 2 security.
- Right Handing Configuration
- Solid brass deadbolt latch with hardened steel roll pin for additional strength and security.
- Shown with Square Lever and Contemporary Square Rose.
- Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty.
Specifications
| Configuration |
Handleset |
| Cylinder | Single Cylinder - 5 Pin C-Keyway Pin & Tumbler |
| Handing | Right |
| Finish | 150 - Satin Nickel |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Backset | Adjustable 2-3/8" or 2-3/4" |
| Center to Center |
5.5 in. |
| Cross Bore |
2-1/8" |
| Door Thickness |
1-3/4", 1-7/8", 2" |
| Latch | 6 Way Latch |
| Strike | Dual Strike Kit |
| Grip Center to Center |
8.40625 in. |
| Handle Projection |
2.4375 in. |
| Interior Handle Length |
4.25 in. |
| Interior Trim Height |
2.5625 in. |
| Interior Trim Width |
2.5625 in. |
| Overall Height |
17.5 in. |
| BHMA Certification |
Grade 2 |
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Baldwin directly at 800-566-1986 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
