Autel - MaxiSYS - MS909 - Advanced Smart Diagnostic Tablet - MaxiFlash VCI - Measurement System
Available to Order
SKU:
AUTEL-MS909
NSID:
31225
- $2,999.00
-
$4,743.75 - $2,999.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

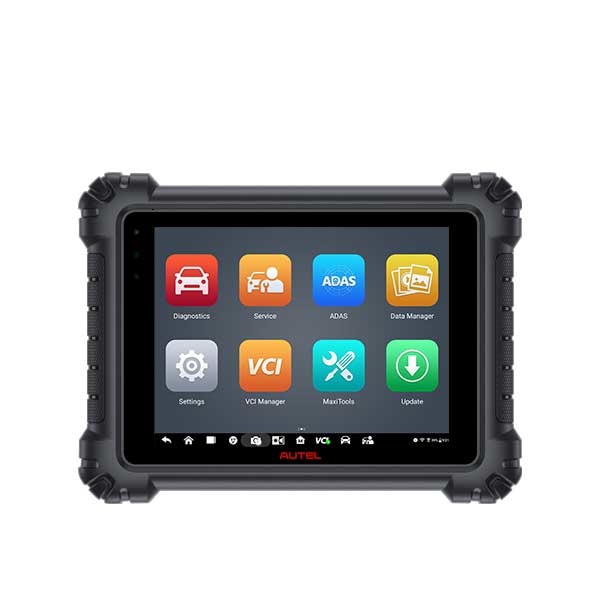

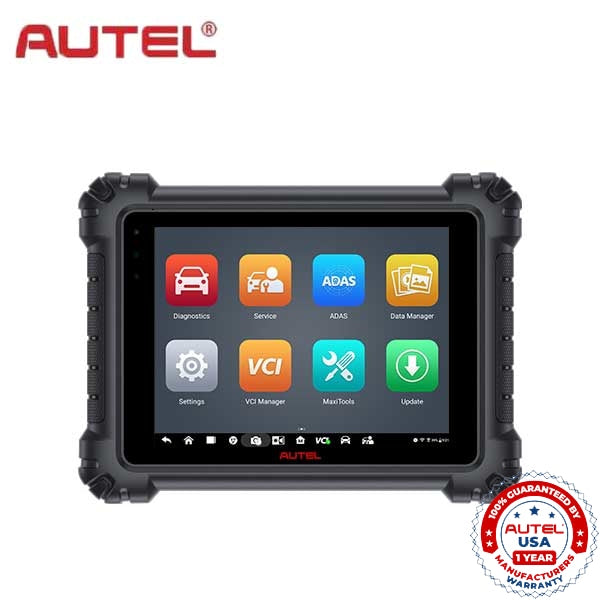

The MaxiSYS MS909 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), 128GB memory, and features an advanced VCI supporting the latest DoIP, D-PDU, and Mega CAN vehicle communication protocols. The MS909 features a dynamic module topology interface for supported vehicles, and has Active Tests and Speciali functions, Coding, and Adaptations capabilities The MS909 features a rechargeable Lithium battery providing 8 hours of continuous use, and front and rear cameras.
Features and benefits:
- 9.7’’ Touchscreen (1536px x 2048px) / Android 7.0
- 2.3GHz+1.7GHz Octa-core Processor / 128GB Memory
- 15000mAh - 8hrs Continuous Operation / 16MP Rear Camera & 5MP Front Camera
- Dynamic Module Topology Interface: Color Coded All System Status Screen (for supported vehicles)
- Cloud-based Report Management: Easily share reports
- Remote Expert-ready: contract with expert programmers and diagnosticians with OE tools and subscriptions for module programming, ADAS calibration, and gateway access.
- ADAS Calibration Software Capable (purchase required)
- Includes MaxiFlash VCI with J2534, RP1210, ISO 22900, D-PDU, DoIP/CAN FD & Mega CAN Protocols

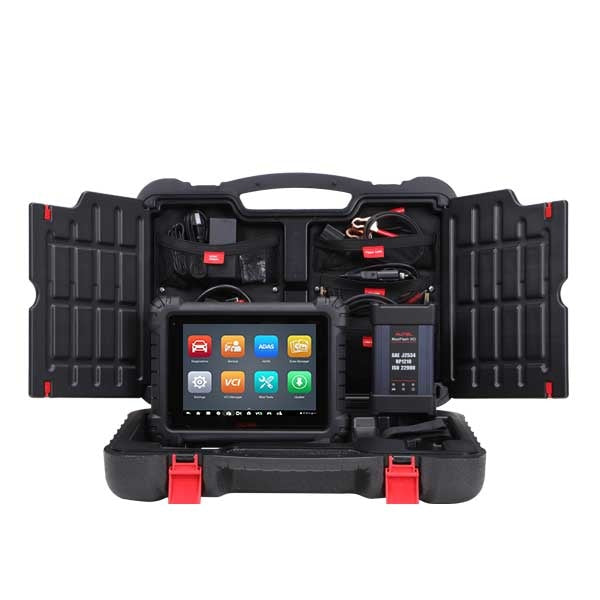

- Includes Connector Kit, Carry Case & 1YR Warranty/Software Subscription
Specifications:
| Operating System | Android 10.0 |
| Processor | Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen |
| Connectivity | Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO) BT V5.0 + BR/EDR GPS USB 2.0 (2 USB TYPE-A ports and a Mini USB port) HDMI 2.0 SD Card (Support up to 256GB) |
| Camera (rear) | Rear: 16 Megapixel, Autofocus with Flashlight Front: 16 Megapixel |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery | 15000mAh 3.8V lithium-polymer battery Charging via 12V AC/DC power supply |
| Input Voltage | 12V/1.3A Adapter |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions (W x H x D) | 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67") |
| Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
