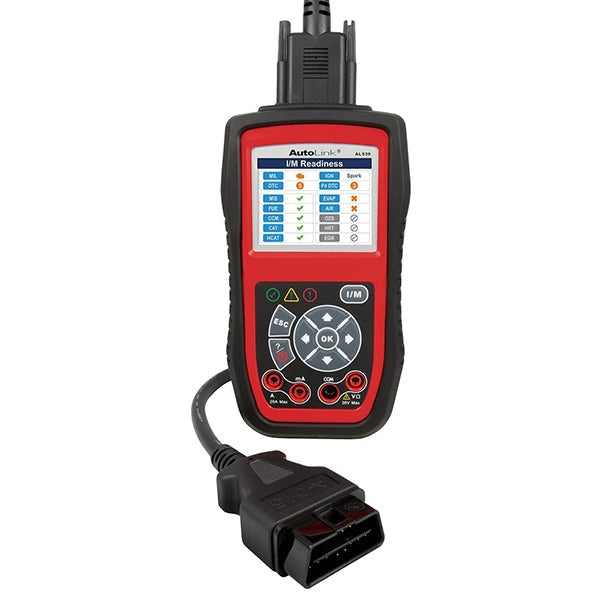

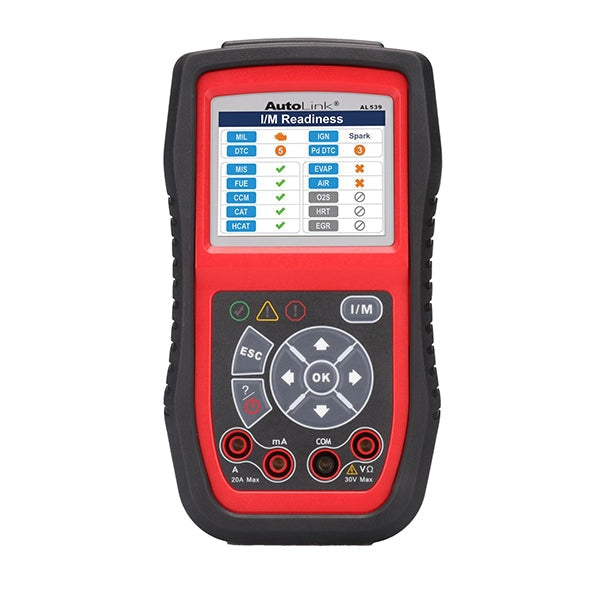

Autel - AutoLink - AL539 - Diagnostic Tool - One-Click I/M Readiness Key - 10 Modes of OBD II Test - Built-in Speaker
In Stock
SKU:
AUTEL-AL539
NSID:
29868
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $166.00
-
$115.07 - $166.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The AutoLink® AL539 OBDII & Electrical Test Tool supports all 10 modes of OBD II test for a complete diagnosis. Featuring the unique patented One-Click I/M Readiness Key, circuit test, starting and charging systems test, TFT color display, and built-in speaker, the versatile, easy-to-use AL539 will streamline automotive service and help ensure rapid, accurate diagnosis and timely repair.
Specifications:
- Works on most 1996 and newer vehicles(OBDII & CAN)-domestic and import
- Features the unique patented One-Click I/M Readiness Key for quick State Emissions readiness check and drive cycle verification
- Easy-to-read AVOmeter allows you to test voltage, continuity and current at the fingertip
- Capable of diagnosing 12V charging systems, starting systems and condition of discharged battery
- Bright color coded LEDs and built-in speaker provide both visual and audible tone for readiness verification
- Easily determines the cause of the Check Engine Light (MIL)
- Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes
- Turns off Check Engine Light (MIL), clears codes and resets monitors Displays monitor and I/M readiness status (emissions)
- Reads live PCM datastream, live O2 sensor test data, freeze frame data
- Graphs data (1996 and newer)
- Troubleshooter codes tips guide technicians to the root cause of trouble code faster, saving diagnosis and repair time
- Memory/battery backup for off-vehicle data review and analysis
- Multilingual menu and DTC definitions-English, Spanish and French, etc.
- Retrieves vehicle information (VIN, CIN and CVN)
- Internet updateable
- Prints data via PC

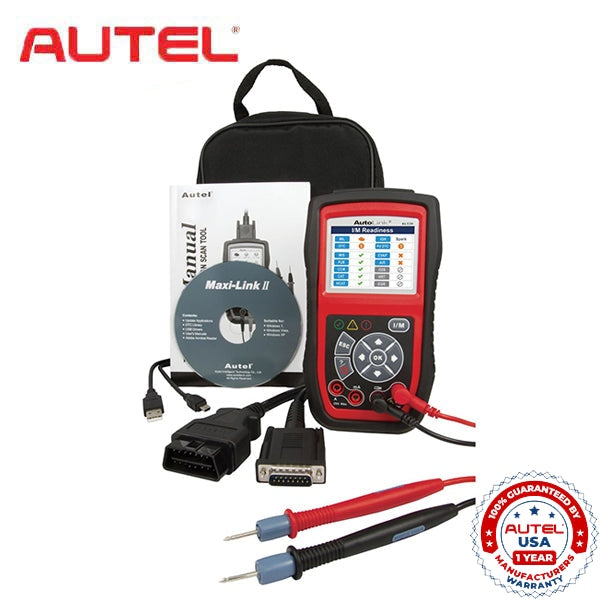

Includes:
- Main Unit
- USB Cable
- Hardcopy User's Manual
- 3.7v Li-ion Battery
- CD Software

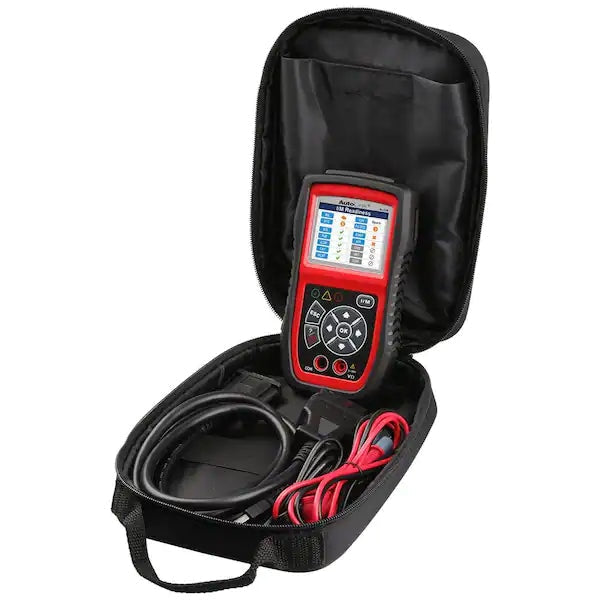

- Protective Nylon Case
- OBD II Cable
- Probes (2)
| Display | TFT color display (320 x 240 dpi) |
| Operating Temperature | 0 to 60°C (32 to 140 F°) |
| Storage Temperature | -20 to 70°C (-4 to 158 F°) |
| Length\Width\Height | 175 mm (6.91”)\96.6 mm (3.80”)\37 mm (1.46”) |
| Weight | 0.3kg (0.8lb, without wire) or 0.68kg (1.82lb, with wire) |
