Autel - AutoLink - AL529 - OBD2 Code Scanner and Emission Tester
In Stock
SKU:
AUTEL-AL529
NSID:
17502
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $99.75
-
$215.99 - $99.75
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

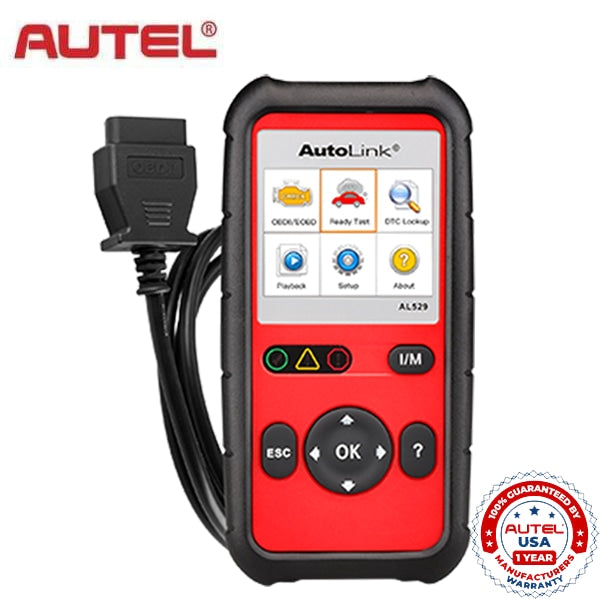

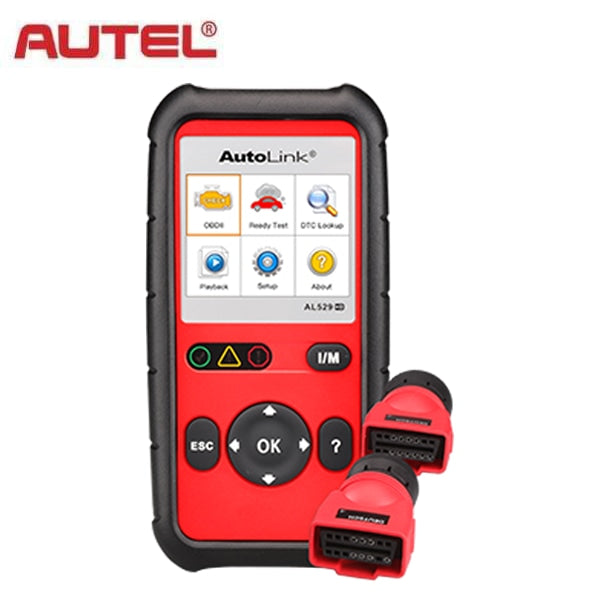

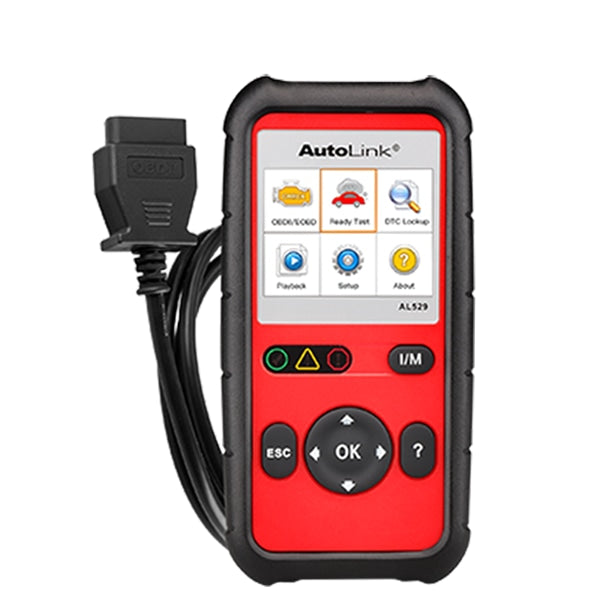

The AutoLink AL529 OBDII Code Reader supports all 10 modes of OBDII test for complete vehicle diagnostics. The easy-to-use tool features a TFT color display and built-in speaker for visual and audible message cues and the patented One-Click I/M Readiness Key for quick State Emissions.
Features:
- AutoVIN function for quickly identifying manufacturer-specific codes
- Reads enhanced codes in Powertrain system for Ford, GM and Chrysler
- Compatible with domestic, Asian and European vehicles, 1996 and newer
- Retrieves generic (P0, P2, P3 and U0), manufacturer-specific (P1, P3 and U1) and pending codes
- Enhanced OBD II Mode 6
- Retrieves vehicle identification information (VIN, CALID and CVN)
- Turns off Check Engine Light, clears codes and resets monitors
- Views freeze frame data
- Displays monitor and I/M readiness (emissions) status
- Reads live PCM data stream
- Displays live O2 sensor test data
- Graphs data
- Reads, stores and plays back live sensor data
- Troubleshooter code tips aid technician in efficient vehicle diagnostics and vehicle repair
- Patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification
- Bright color-coded LEDs and built-in speaker provide both visual and audible tone for readiness verification
- Multilingual (including English, Spanish and French) menu and DTC definitions
- Internet Updatable
- Prints data via Windows PC
Specifications:
| Display | 2.8-inch LCD (320x240 dpi) |
| Connectivity | USB mini 2.0 OBD II DB15 |
| Operating Temp | 0℃ to 60 ℃ (32℉ to 140℉) |
| Storage Temp | -20℃ to 70 ℃ (-1℉ to 158℉) |
| External Power | 8.0 to 18.0V power provided via vehicle battery |
| Dimensions (LxWxH) | 183 mm (7.2”) x 91 mm (3.58”) x 33 mm (1.3”) |
