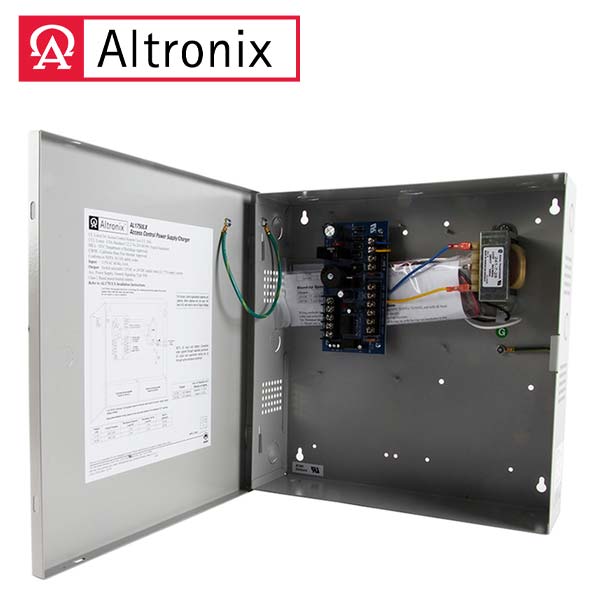

Altronix AL175ULX Power Supply for Access Control
In Stock
SKU:
ALT-AL175ULX
NSID:
980
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $218.71
-
$238.45 - $218.71
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
- Manufacturer: Altronix
- Charger for Access Control
- PN: AL175ULX
Features and benefits:
Altronix AL175ULX is a Two (2) Output Switching Power Supply/Charger that converts a 115VAC 60Hz input, into two (2) individually PTC protected 12VDC or 24VDC outputs.
Battery not included.
Input:
- Input 115VAC, 60Hz, 0.6A.
- Access control trigger input.
Output:
- 12VDC or 24VDC selectable outputs.
- 1.75A supply current.
- Two (2) Class 2 Rated power limited outputs.
- Fail-Safe/Fail-Secure lock output (switched).
- Auxiliary power output (unswitched).
- PTC protected outputs, rated @ 2.5A.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Backup:
- Maximum charge current: 400mA.
- Automatic switch over to stand-by battery when AC fails
Battery not included.
Supervision:
- AC fail supervision (form "C" contacts).
- Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).
Visual Indicators:
- AC input and DC output LED indicators.
Temperature:
- Operating 0ºC to 49ºC (32ºF to 120ºF).
- Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.):
- 12VDC: 11 BTU/Hr.
- 24VDC: 22 BTU/Hr.
- System AC input VA requirement: 69VA.
Enclosure:
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Weights (approximate):
- Product Weight: 8.4 Lbs. (3.81 kg).
- Shipping Weight: 9.4 Lbs. (4.263 kg).
