Alarm Lock Trilogy - PDLN4500 - Digital PROX Keypad Lever Set w/ Audit Trail - Networx 26D - Satin Chrome
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $1,040.47
-
$1,212.19 - $1,040.47
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

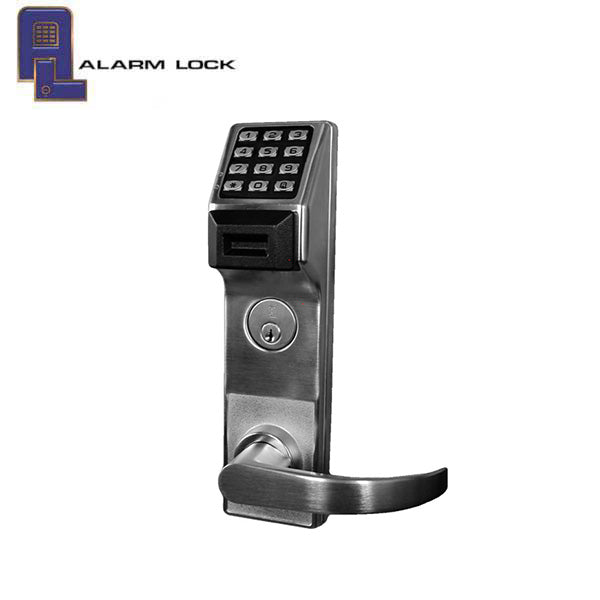

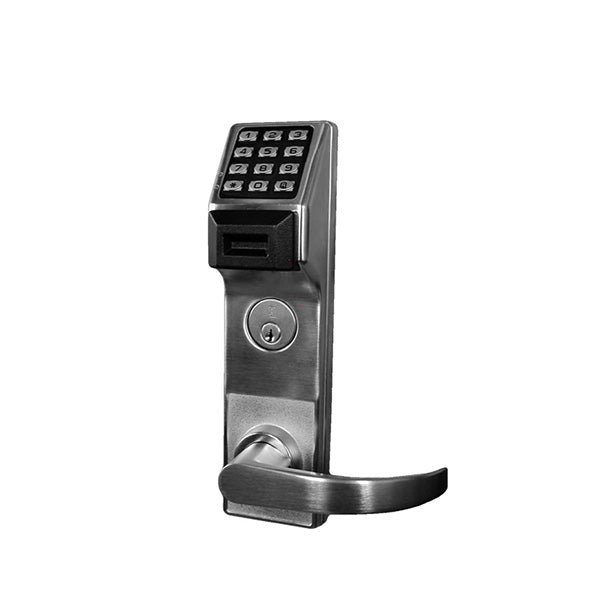

The Alarm Locks PDLN4500 Digital PROX Keypad Lever Lock is a mortisebased lock, for extra security. It allows use of "Residency" and "Privacy" features, and can be programmed either way to suit the installation requirements.
The lock feature an HID compatible ProxCard reader, a real-time clock/calendar that automatically adjusts for Daylight Saving Time and allows for automated programming of events. Up to 2000 unique User Codes can be added to the lock, from 3-6 digits in length.
More Information Below
SPECIFICATIONS:
| LOCK FUNCTION | Entrance Digital PROX Keypad Lever Lock w/ Audit Trail |
| DOOR THICKNESS | 1 5/8″ to 1 7/8″ standard. For 1 3/8″ doors use HW567 & HW569 spacers. |
| BACKSET | 2 3/4″ Standard |
| HANDING | Non-handed; fully field-reversible |
| STRIKE | 1 1/4" x 4 7/8" strike included. With screws for wood or metal jambs. 1 1/4″ x 4 7/8″. ASA strike also included. |
| KEYPAD | All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced. |
| Lockdown or Privacy | Privacy/ Lock-out |
| Functions | DB Deadbolt |
| LEVER TRIM | Aluminum door retrofit outside trim for Adams Rite®️ 1850, 1950,4710, 4070*, 4730, 4900 Series |
| POWER | 5AA alkaline batteries, supplied. Long-battery life. Audible low battery alert, visual and audible entry indicators, 60,000 cycles typical. |
| STANDARD KEY OVERRIDE CYLINDER | Solid brass 6 pin tumbler cylinder keyed 5, SCI keyway, furnished in all K.O. models. Tailpieces for Schlage (HW580) & Lori (HW620) cylinders (furnished). |
| KEYS | 2 Keys Included |
| PROGRAMMABLE | Locking modes, event schedules, group, individual, master, management, passage, emergency service codes. Lockout, remote override capability, and allowable entry time (3, 10, or 15 seconds), are programmable through the keypad. |
| USER CODES | support 5000 users by PIN, HID Prox ID cards, or fobs. 36,000 events audit trail by the user and 500 events schedule/real-time clock (e.g. lock/unlock by time) |
| PROXIMITY FREQUENCY | 125 kHz |
| WEATHERPROOF | -31˚ to +151˚F (-35˚ to +66˚C) |
| BATTERY / CYCLES TYPICAL | 5AA; 60000 |
| CONSTRUCTION | Zinc Alloy, Vandal Resistant |
| FINISH | 26D Satin Chrome |
