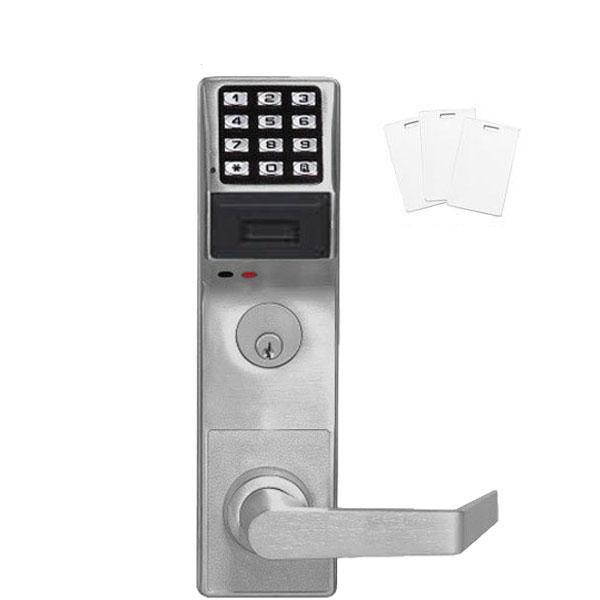

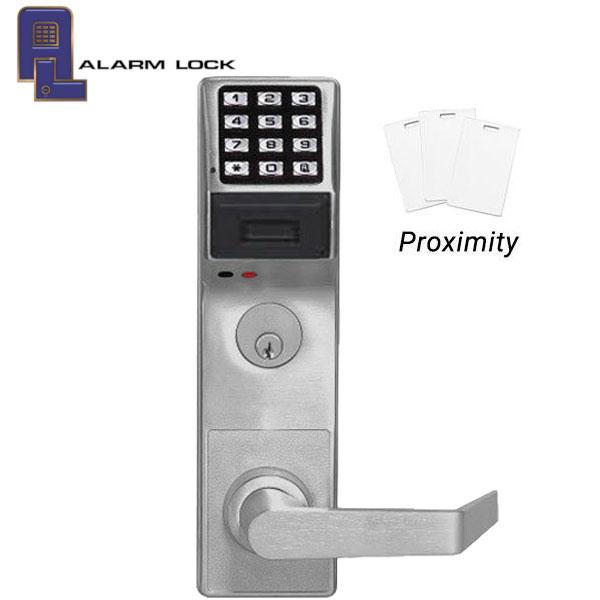

Alarm Lock Trilogy - PDL3500CRR - Classroom Digital PROX Mortise Lever Set w/ Audit Trail - Right Handed - 26D - Satin Chrome
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $1,118.22
-
$1,400.00 - $1,118.22
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Trilogy PDL3500CRL Classroom PROX Mortise Lever Lock w/ Audit Trail is Alarm Lock's one of the most popular standalone pushbutton Mortise lock with Grade 1 durability. These durable electronic digital locks are available in indoor and outdoor models. The clutch mechanism permits the turning lever without retracting latch and reduces the stress on lock bodies and spindle. It has an outside lever free turning in the locked position. While entering the access code, key bypass or remote bypass allows the lever to retract the latch. Its inside lever always instant egress. It saves all the downtime and 1/2 the cost of hardwired systems.
- More Information Below
SPECIFICATIONS:
| LOCK FUNCTION | Entrance Classroom Digital PROX Mortise Lever Lock w/ Audit Trail |
| DOOR THICKNESS | 1 5/8″ to 1 7/8″ standard |
| BACKSET | 2 3/4″ Standard |
| HANDING | Right-handed; fully field-reversible |
| STRIKE | 1-1/4” x 4-7/8” strike standard |
| KEYPAD | All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced |
| LEVER TRIM | Aluminum door retrofit outside trim for Adams Rite®️ 1850, 1950,4710, 4070*, 4730, 4900 Series |
| POWER | 5AA alkaline batteries, supplied. Long-battery life. Audible low battery alert, visual and audible entry indicators, 75,000 cycles typical |
| STANDARD KEY OVERRIDE CYLINDER | 1-3/8" (3.5cm) mortise cylinder supplied. Will accept 1-3/8" to 1-1/2" (3.5-3.8cm) mortise cylinder |
| CLASSROOM FUNCTION | Classroom function features stainless steel latch bolt with 3/4" (1.91cm) projection and deadlocking latch. Deadbolt may be projected from a key cylinder from the outside door or turn-piece from the inside door. |
| KEYS | 2 Keys Included |
| PROGRAMMABLE | Locking modes, event schedules, group, individual, master, management, passage, emergency service codes. Lockout, remote override capability, and allowable entry time (3, 10, or 15 seconds), are programmable through the keypad |
| USER CODES | support 2000 users by PIN, HID Prox ID cards, or fobs. 40,000 events audit trail by the user and 500 events schedule/real-time clock (e.g. lock/unlock by time) |
| PROXIMITY FREQUENCY | 125 kHz |
| WEATHERPROOF | -31˚ to +151˚F (-35˚ to +66˚C) |
| CONSTRUCTION | Zinc Alloy, Vandal Resistant |
| FINISH | 26D Satin Chrome |
Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here
Downloads:
Specifications
