Alarm Lock Trilogy - DL2700LD - Access Control Lever Set - Remote Release FOB & Classroom Lockdown - Satin Chrome - 26D
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $449.10
-
$549.99 - $449.10
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

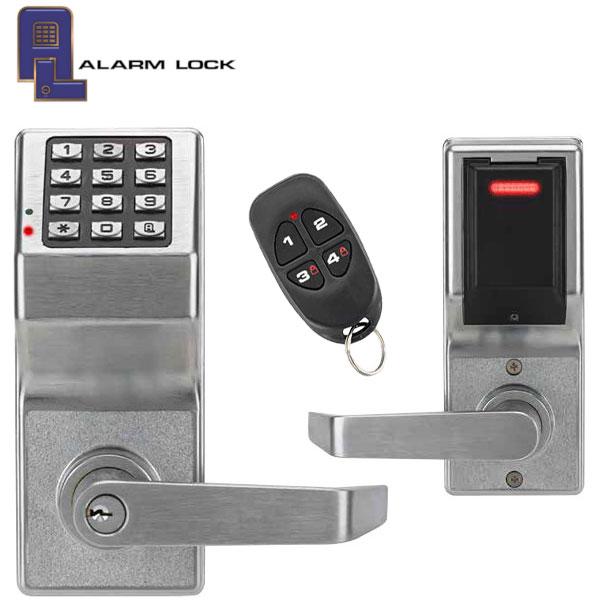

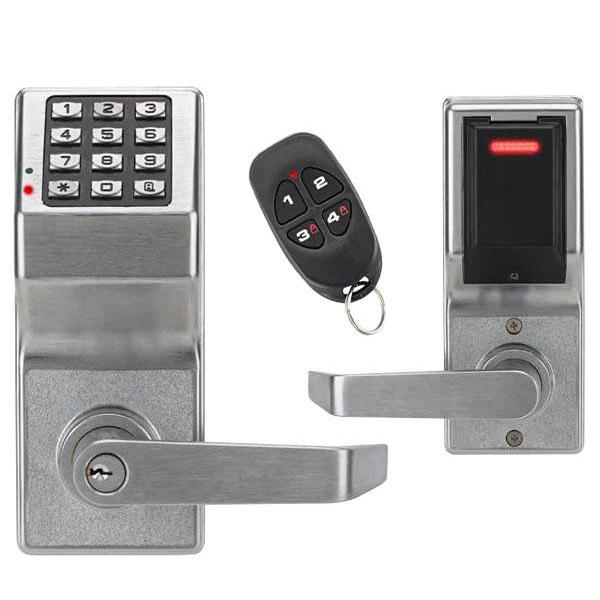

The Trilogy DL2700 Access Control Lever Lock is one of Alarm Lock's most popular standalone pushbutton cylindrical lock with Grade 1 durability. a leader in access and egress solutions for education, healthcare, multi-use commercial, retail, transportation & industry. Field-proven reliability. This specific model is capable of being unlocked via remote and or FOB with support for up to 50 keyfobs.
- Remote Release Function allows you to use it as a "buzzer system" without the need for an electric strike
- Lock-down up to four locks with one compact remote keyfob – Pocket-sized, just over 2” (One Included more available HERE)
- For multi-classroom users, up to 50 keyfobs can be supported on each lock
- Each keyfob can control up to four locks for remote lockdown activation, up to 100’ away
- Bright visual lockdown indicator bar on inner door confirms security activation to occupants; Outside small indicator light flashes and/or optionally beeps when in lockdown
- Lockdown Override Code will reactivate the pushbutton keypad and enable authorized teachers/staff and first responders, outside the classroom or area, to readily deactivate the lockout function at any time
SPECIFICATIONS
| LOCK FUNCTION |
Entrance Access Control Lever Lock |
| OPERATION | The clutch mechanism permits turning the lever without retracting the latch and reduces stress on lock bodies and spindle. Outside lever free turning in the locked position. Entering access code, key bypass, or remote bypass will allow the lever to retract the latch. Inside lever always instant egress |
| DOOR THICKNESS | 1 5/8" to 1 7/8." |
| BACKSET | 2 3/4" Standard. |
| KEYPAD | All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced |
| STANDARD KEY OVERRIDE CYLINDERS | Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included HW580 fits Schlage, Corbin/ Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders |
| LATCHBOLT | UL Listed, fire-rated, 3 hours, 1/2” throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors |
| STRIKE | 1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included. With screws for wood or metal jambs |
| LATCH FRONT | 1 1/8” x 2 1/4” wrought brass or stainless steel |
| PROGRAMMABLE | Up to 100 3-5 digit codes: 1 master, 10 managers, 90 basic users, 3 one-time service codes |
| HANDING | Non-handed |
| FINISHES | US26D satin chrome |
| POWER | 5 AA alkaline batteries are now rated at 200,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor |
| DOOR PREP | Standard ANSI 161 Series Prep, modified by adding additional through-bolt holes |
| COMPLIANCES | Grade 1, heavy-duty cylindrical lockset, UL listed and FCC certified. ADA compliant lever sets |
Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here
Downloads:
Brochure
Specifications
Note: Alarm Locks DL2700 now come standard with weatherproof protection. Enjoy reliable access control, even in the harshest outdoor conditions.
