Alarm Lock - DL5200IC - Double Sided Trilogy SFIC - 100 Users - 26D
Available to Order
SKU:
ALL-DL5200IC-26D
NSID:
77088
- $834.21
-
$1,001.05 - $834.21
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

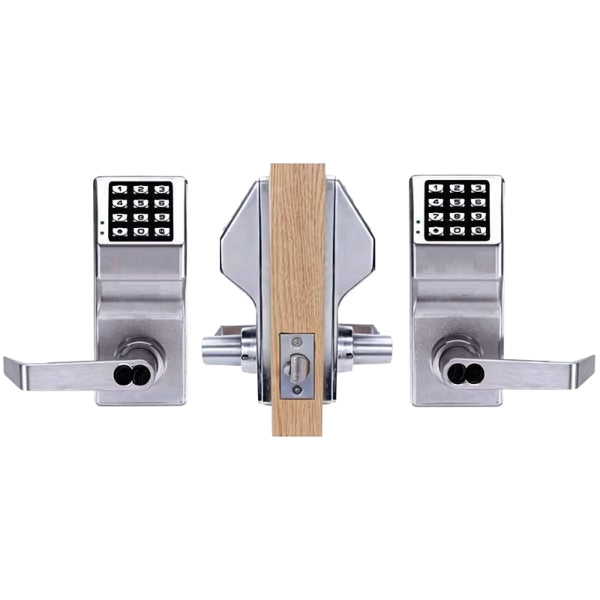

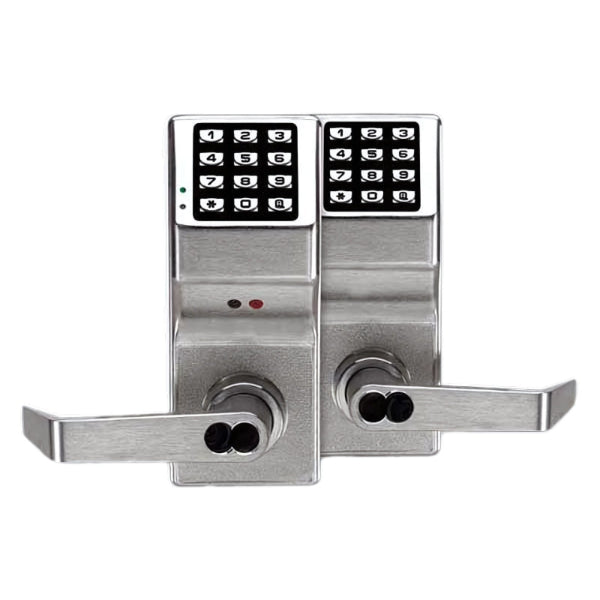

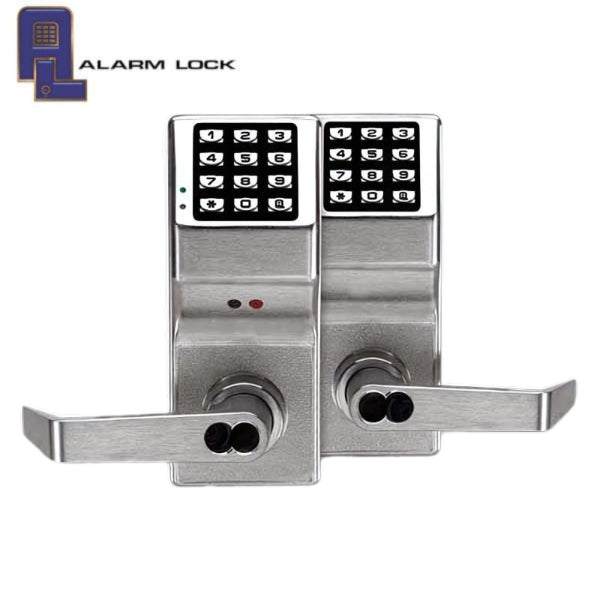

The Alarm Lock DL5200IC-26D is a heavy-duty, double-sided electronic keypad lock designed to provide secure access control for both entry and exit points. This standalone lock is ideal for environments requiring controlled access from both sides of the door, such as community pool gates, courtyard gates, airport jetway doors, interrogation rooms, psychiatric wards, and Alzheimer's care areas.
Features:
- Incorporates all of the important features of DL2700 (T2) into a double-sided lock
- Easy to add, delete, change users at the keypad (on primary side of door)
- Programming user codes on one side of the door works both sides, cutting your time & labor in half
- Ideal for community pool gates, courtyard gates, airport jetway doors, interrogation rooms, psych wards
- Comes with LED & audible entry indicators
- 100 user codes (3-6 digit codes)
- Battery operation: 5 AA’s; appx. 80,000 cycles; low battery alerts; lock may be hard-wired with 9VDC or 9VAC power supply for remote release / battery backup
- Visual and audible entry and egress indicators
- Weatherproof -31˚ to 151˚F (-35˚ to +66˚C) – water-sealed for exterior or interior use
- 5AA batteries operated, 80,000 cycles, typical
- Key override on primary door side (key cylinder on other side is to gain access to the battery compartment)
| Specifications | Details |
|---|---|
| Brand | Alarm Lock |
| Usage | Heavy Duty |
| Finishes | US26D (626) Satin Chrome |
| Lock Function | Pushbutton Keypad |
| ANSI Grade | ANSI Grade 1 |
| Cylinder | Prepped for (SFIC) Small Format Interchangeable Core (less core) |
| Backset | 2-3/4" |
| Strikes | 1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included |
| Door Thickness | 1-3/4" |
| Latch | 1/2” throw, deadlocking – 1-1/8" x 2-1/4" face |
| Handing | Non Handed – Completely Reversible |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Power | 5 AA alkaline batteries are now rated at 200,000 cycles, supplied |
| Operating Temperature | +151°F to -31°F (+66°C to -35°C) |
| Reader Type | Keypad |
| Door Applications | Interior or Exterior Doors |
