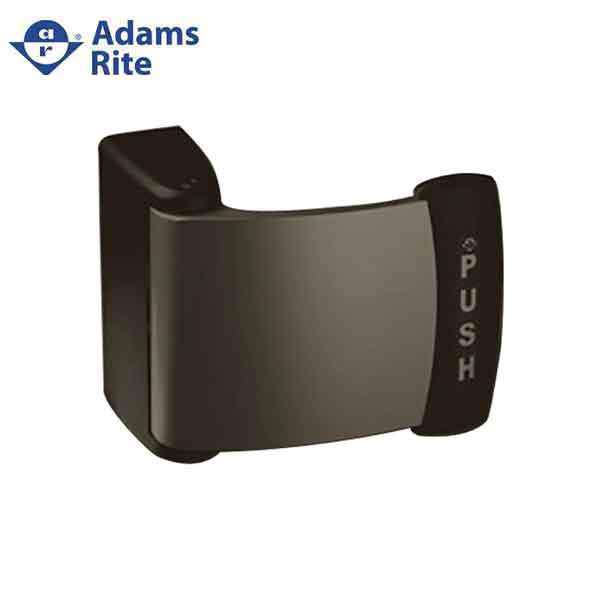

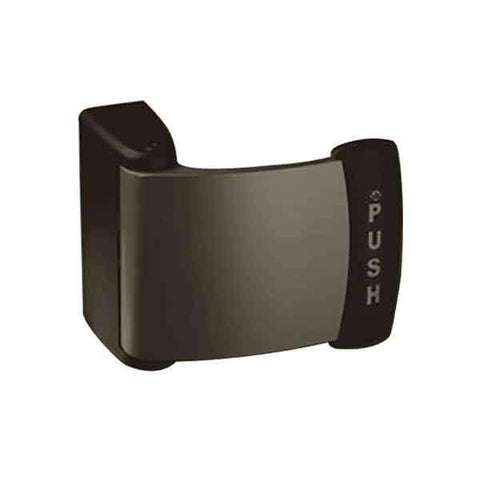

The 4591 Deadlatch Paddle is an ergonomically-friendly alternative to a knob or lever handle. Operate with a simple push or pull.
An alternative to knob or lever handles. Makes opening a latched door as natural as opening an unlatched one – just push or pull in the direction in which the door swings. Compatible with any Adams Rite 4300, 4500 or 4900 Series Deadlatch, MS+1890 Deadlock/Deadlatch, or 2190/2290 Interconnected Deadbolt/ Deadlatch - Check door sizes for each below
More Details Below
Features
| Operation |
Configured push left . Can be reconfigured to any mode in the field. Dogging may not be utilized in pull configuration. |
| Paddle | Extruded aluminum |
| Escutcheons | Zinc alloy with black finish. Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction |
| Cam Plug | Furnished for use with 4300, 4500 and 4900 Series Deadlatches. Cam plug not for use with MS+1890 Deadlock/Deadlatch or 2190/2290 Interconnected Deadbolt/ Deadlatch. Secured in latch body by cylinder set screw, plug is also rigidly tied to escutcheon by hardened steel pins |
| Monitor Switches | None |
| Door Thickness |
For 4300, 4500, 4900 Series Deadlatches - 1-13/16" to 2" For MS+1890, 2190 - 1-3/4" to 2-1/4" |
| Paddle Dogging | Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors. |
| Projection | 2-5/8" [66.7 mm] when fully projected, 1-5/8" [41.3 mm] when dogged. |
| Dogging | “PUSH” version only. Turning hex key in escutcheon holds the paddle down, leaving door freeswinging. |
Download Installation Instructions Here
