Adams Rite - 4590 - Deadlatch Paddle Handle - Push to Left - 1-3/4" Door - Aluminum Anodized - for 4300/4500/4900 Deadlatches
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $62.50
-
$110.00 - $62.50
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
LIST PRICE: $110.00
ADR-4590-02-00-628

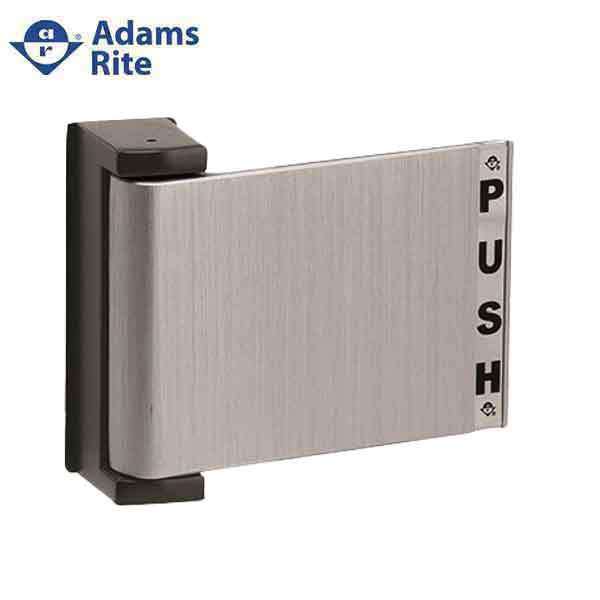

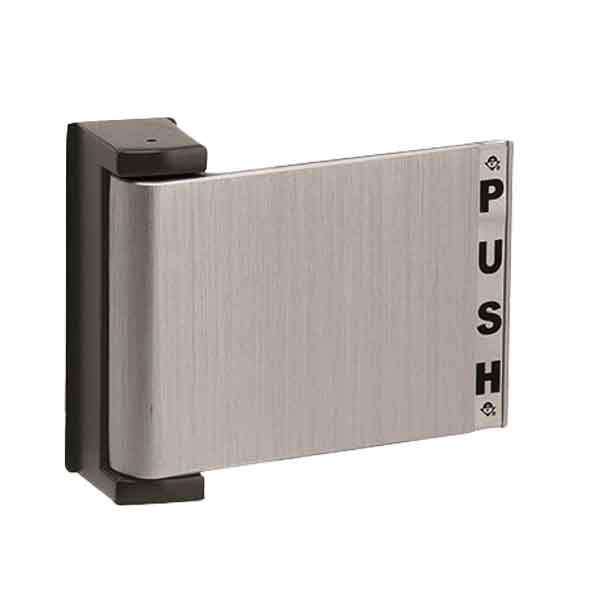

The 4590 Deadlatch Paddle is an ergonomically-friendly alternative to a knob or lever handle. Operate with a simple push or pull.
An alternative to knob or lever handles. Makes opening a latched door as natural as opening an unlatched one – just push or pull in the direction in which the door swings. Compatible with any Adams Rite 4300, 4500 or 4900 Series Deadlatch
More Details Below
Features
| Operation |
Configured push left . Can be reconfigured to any mode in the field. Dogging may not be utilized in pull configuration. |
| Paddle | Extruded aluminum |

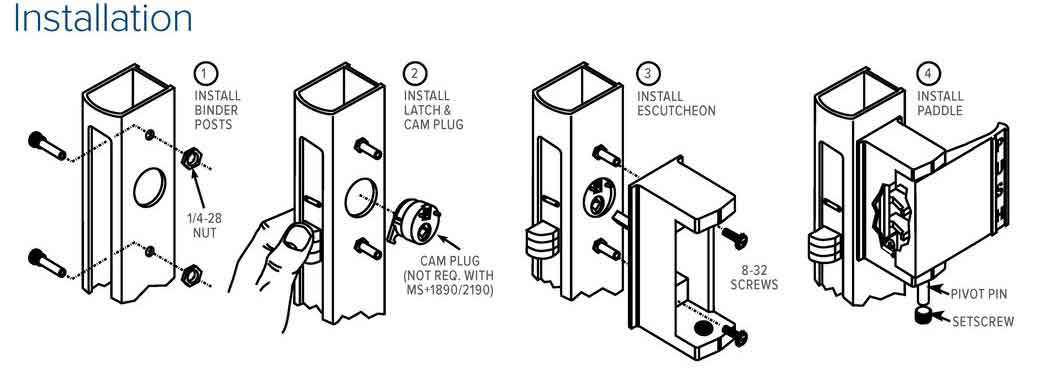

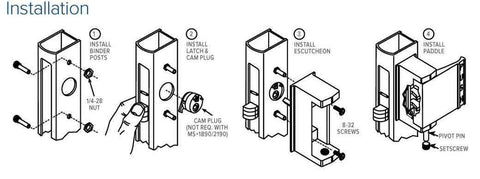

| Escutcheons | Zinc alloy with black finish. Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction |
| Cam Plug |
Furnished for use with 4300, 4500 and 4900 Series Deadlatches. Cam plug not for use with MS+1890 Deadlock/Deadlatch or 2190/2290 Interconnected Deadbolt/ Deadlatch. Secured in latch body by cylinder set screw, plug is also rigidly tied to escutcheon by hardened steel pins |
| Monitor Switches | None |
| Door Thickness |
For 4300, 4500, 4900 Series Deadlatches - 1-3/4" |

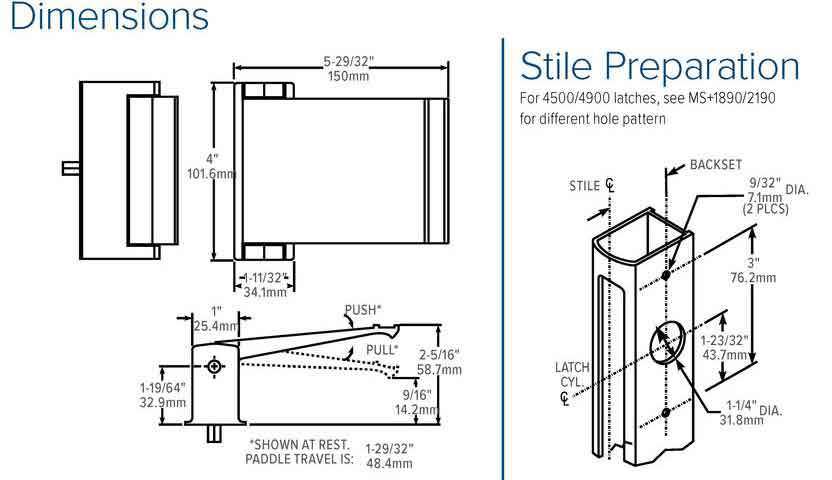

| Paddle Dogging | Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors. |
| Projection | 2-5/8" [66.7 mm] when fully projected, 1-5/8" [41.3 mm] when dogged. |
| Dogging | “PUSH” version only. Turning hex key in escutcheon holds the paddle down, leaving door freeswinging. |
