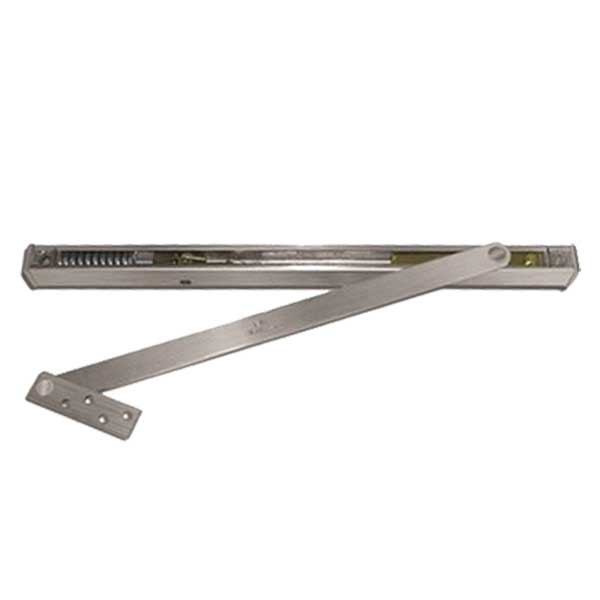

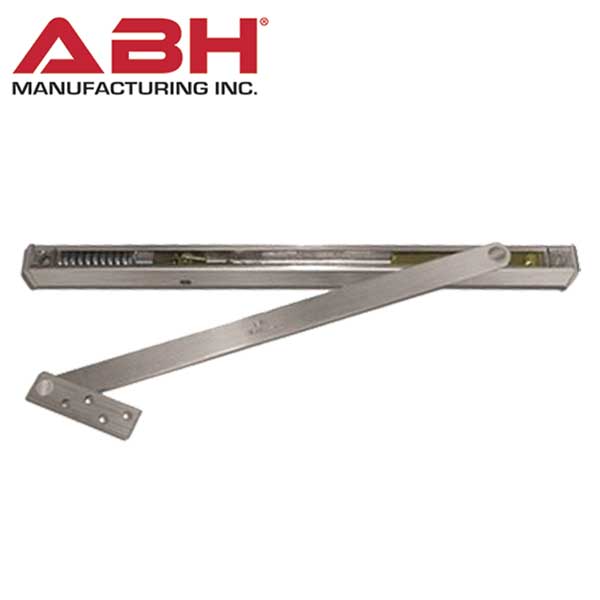

ABH - 1020 - Heavy Duty - Concealed Mount Overhead Door Stop - Satin Stainless
In Stock
SKU:
ABH-1000-1021
NSID:
21261
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $121.80
-
$139.99 - $121.80
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Stop Function Heavy Duty Concealed Mount Closer Arm is for interior or exterior use on frequent traffic and heavy weight doors. Can be used on single or double acting doors with hinges, swing clear or offset pivots or center hung doors. Shock absorbing spring provides a 3 to 5 degree cushion before a dead-stop.
Features:
- Concealed Mount
- Heavy Duty
- Stop function applied
- Singe or Double acting doors
- Non-handed
- For Interior or exterior use on frequent traffic and heavy weight doors
-
NOTE: This Item Does NOT Qualify for FREE Shipping - Please contact your sales representative to get shipping costs. Call 1-800-878-6604 between Monday and Friday 9AM-6PM EST
Specifications:
| Function: | Stop Function |
| Door Thickness: | 1-3/4" minimum |
| Frame Opening: | 85° to 110° of opening (5° increments) |
| Door Width: | Fits butt hinges or offset pivots 27” - 29-15/16”. 30” - Center Hung 32-15/16” |
| Handing: | Non-handed |
| Spring: | Shock absorbing spring provides 3° to 5° cushion before dead-stop |
| Material: | Stainless Steel |
| Finish: | Satin Stainless Steel |
| Mounting Style: | Concealed |
| Certification: | ANSI Code C01541, UL Listed 90min. wood and 3hr metal doors |
Downloads:
