Adams Rite - MS Deadlock - MS1850SN-45X - 1-1/2" Backset - ANSI Size - Hook Bolt - Flat Faceplate - Aluminum - Metal / Wood Door
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $63.56
-
$72.00 - $63.56
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
LIST PRICE: $72.00
ADR-MS1850SN-450-628

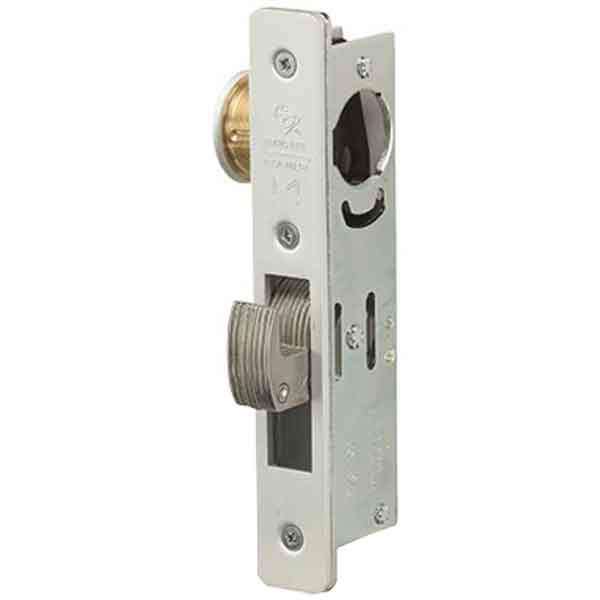

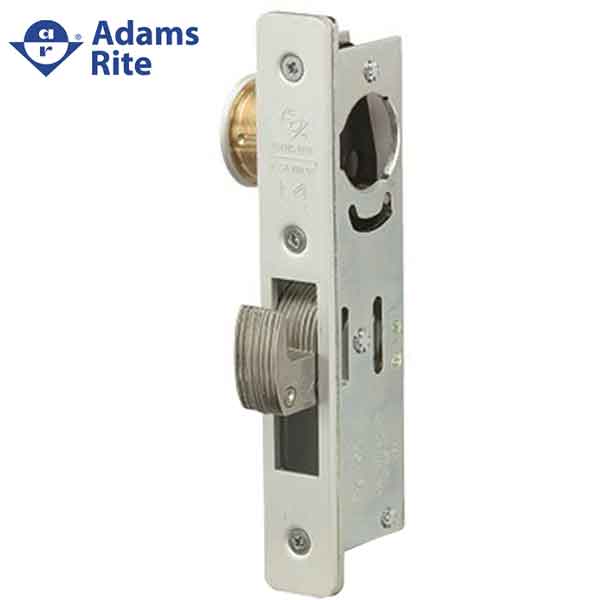

The ANSI size MS1850SN-45X Series MS Deadlock utilizes a stainless steel hookbolt, both activated by a pivot mechanism to provide maximum security for hollow metal or wood doors.
More Details Below
Features

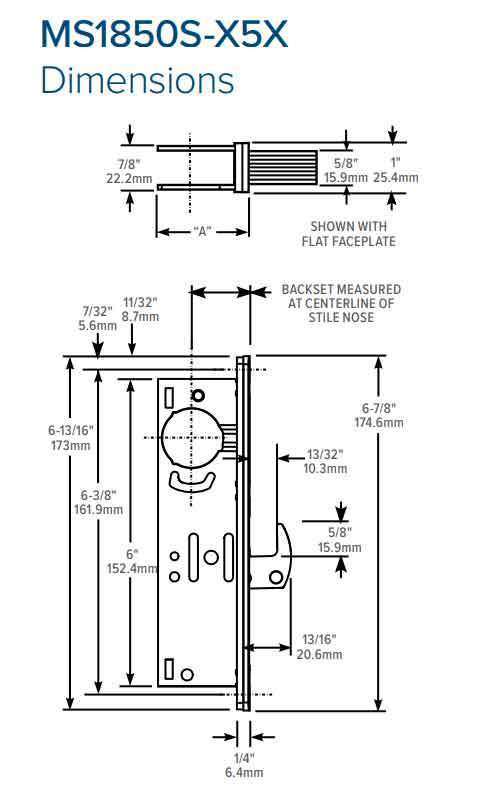

| Backset | 1-1/2” [38.1 mm] |
| Case | Measures 1” x 6” x 2-1/4” [25.4 mm x 152.4 mm x 57.2 mm]. Steel with corrosion-resistant plating. |
| Hookbolt | The hookbolt measures 5/8" x 1-3/8" [15.9 mm x 34.9 mm] with 13/16" [20.6 mm] throw. Hook shape repels pry bar attempts to “spread” the door from its jamb or lift it off its track. |
| Faceplate | Flat - Measures 1-1/4” x 8” [31.8 mm x 203.2 mm] |
| Door Types | Hollow Metal, Wood, Swinging Door |
| Standard Package | Individually boxed with faceplate and mounting screws. |
Installation Instructions Download Here
Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam. Cylinder Sold Separately
The ANSI size MS1850SN-45X Series MS® Deadlock provides maximum security and ease of installation for hollow metal or wood sliding doors. Its standard 1-1/2” [38.1 mm] backset dimension provides adequate clearance for the deep jamb “pocket” of many commercial and industrial entrances. The locking mechanism is identical to the widely used MS1850S Series MS Deadlock, except that the massive laminated bolt is provided in a hook shape to resist the parting motion of sliding door and jamb. The over-center maximum security (MS) locking action assures that forced entry attempts to pry the door in any direction, up, down, or sideways will be defeated.
Operation
360° turn of key or thumbturn projects or retracts the counterbalanced bolt. Key can be removed only when bolt is in a positively locked or unlocked position. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder, available separately or thumbturn such as the 4066 Thumbturn, available separately. Lock accepts cylinder from either or both sides.
